Line Scan Machine Vision Cameras

The Next Generation of Line Scan Imaging

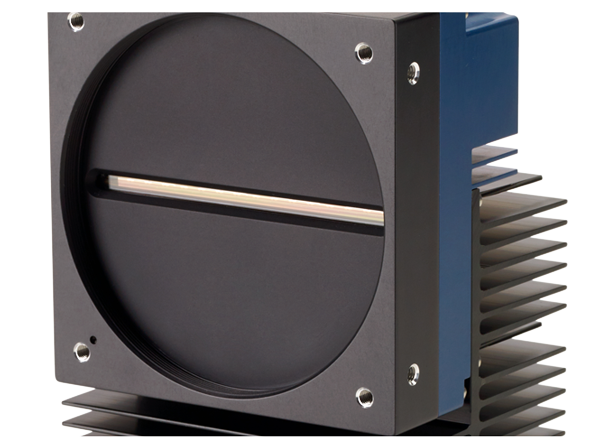

The all new Linea HS™ delivers line rates up to an incredible 400 kHz at 32k resolution — over 13 Gpixels/sec via CLHS interface. With up to 128 TDI stages (plus an extra 64 in HDR mode) for unmatched sensitivity and incredibly low noise, Linea HS excels in the highest speed, lowest light applications.

Fully Integrated Line Scan Imaging Modules

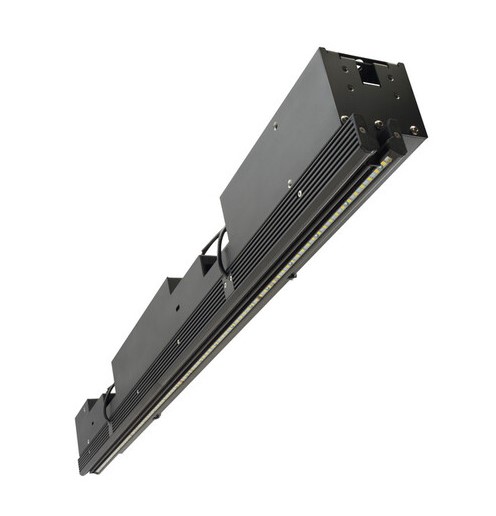

AxCIS™ is a fully integrated line scan imaging module which combines sensors, lenses, and lights all-in-one. This Contact Image Sensor (CIS) is easy-to-use and offers a lower system cost for many demanding machine vision applications as well as superior signal-to-noise ratio and a Camera Link HS SFP+ fiberoptic interface. AxCIS can fit anywhere in your system, even with limited vertical clearance and it’s easy to install, with no complex alignment or calibration required and a single 24v power supply.

For more information, check out the datasheet below.

Dalsa - Linea Lite

Compact and remarkably cost effective, Linea Lite makes line scan more accessible than ever. Designed with performance in mind. 2k resolution up to 50 kHz and 4k resolution up to 25 kHz.

DALSA - Linea

Linea line scan cameras offer innovative mono and color performance at attractive prices. Resolutions from 2k to 16k, line rates to 71 kHz. GigE, Camera Link, and CLHS interface options.

Dalsa - Linea2

Linea™2 series offers 5x bandwidth with 5GigE interface, powered by Teledyne quadlinear sensor for RGB+NIR multispectral imaging. Elevate your system's performance with dazzling speed and detection capability.

Dalsa - Linea ML

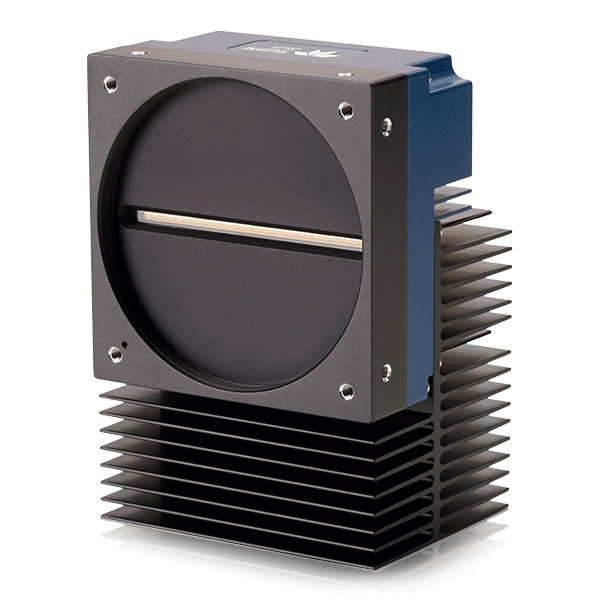

Leading edge multi-line CMOS technology delivers superb color plus near-infrared (NIR) fidelity for even the most demanding applications. 8k and 16k at 300 kHz, CLHS interface with fiber options.

Dalsa - Linea SWIR

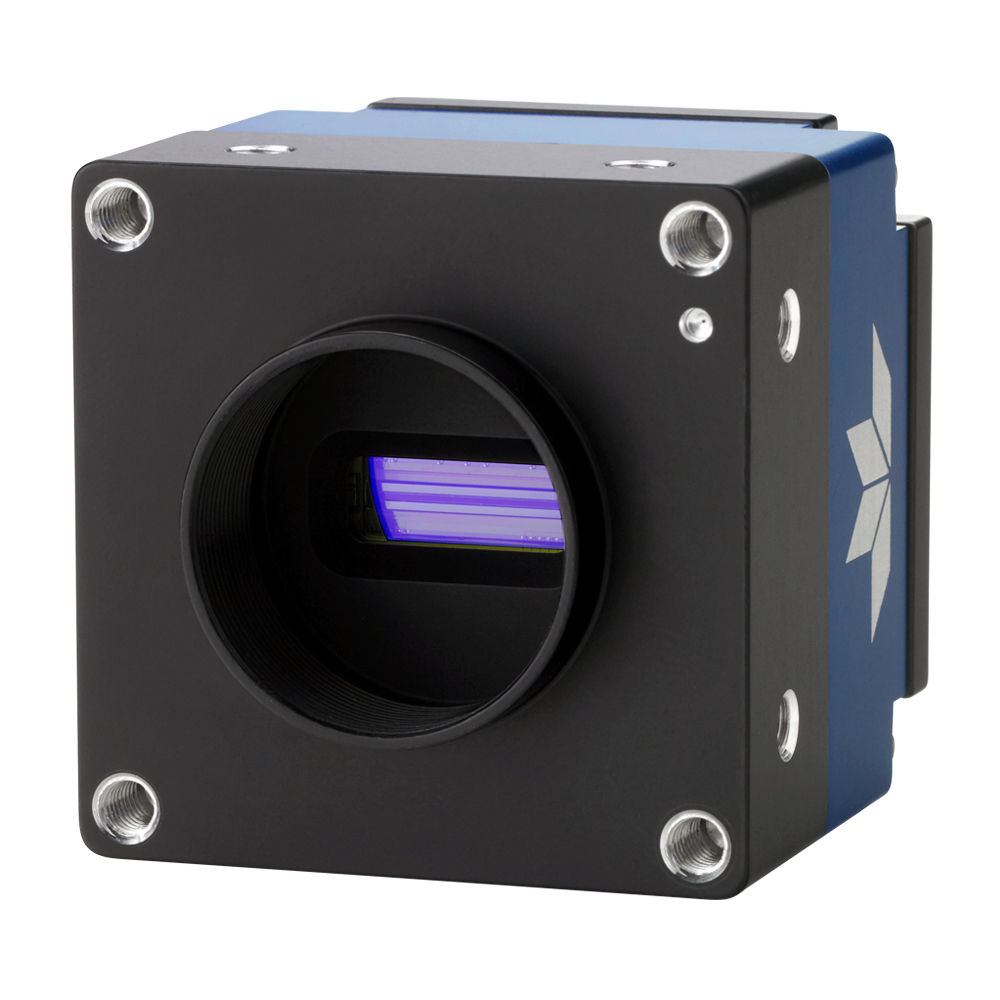

1024 pixel GigE SWIR line scan camera features a cutting-edge InGaAs sensor in a compact package for a wide variety of machine vision applications.

Dalsa - Piranha4

High speed with innovative color and multispectral NIR options. Up to 8k, 70 kHz

Dalsa - Piranha4 Multispectral

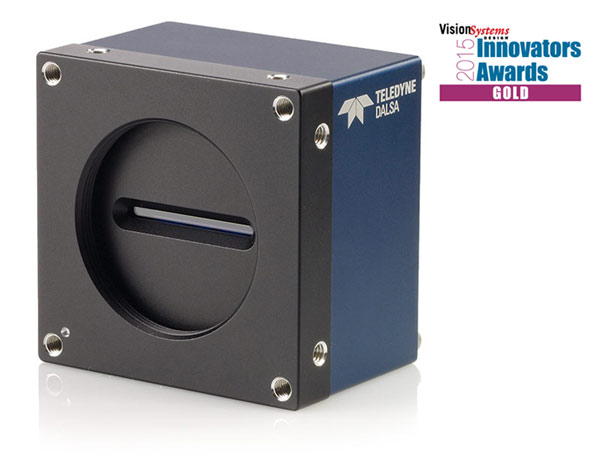

Industry leading speeds to meet future requirements of higher throughput in multi-spectral imaging applications.

Dalsa - Linea HS

Absolute speed and performance. Charge domain CMOS TDI with 8k, 16k, or 32k resolution and line rates up to 400 kHz. CLHS interface with fiber options and unique multifield capabilities.

Dalsa - Piranha XL

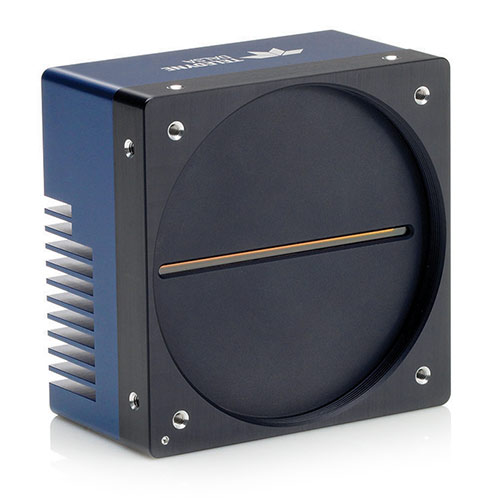

Piranha XL line scan cameras bring new levels of sensitivity, speed, and low noise together through voltage-domain CMOS TDI. Color models too! 16k resolution up to 125 kHz line rate

High Quality Line Scan Capabilities from LUCID Vision Labs.

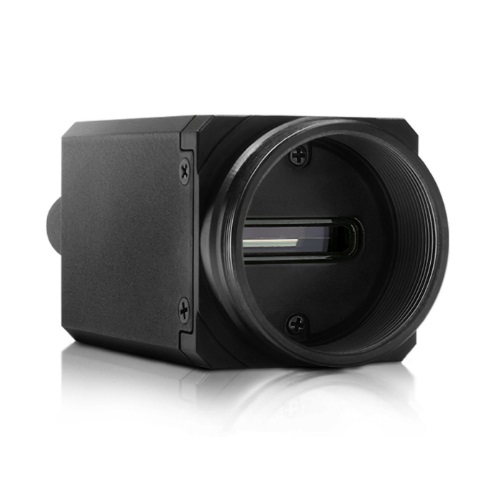

The Triton line scan camera is ideal for a wide range of high-speed applications such as continuous inspection of paper, plastic, and metal manufacturing; object motion inspection such as train or road traffic. It’s also well suited for OCR recognition (ie postal, bar-code scanning), food sorting, PCB inspection, pharmaceutical inspection and other conveyor belt applications where objects are in constant motion.

High Speed and High Sensitivity TDI Line Scan cameras.

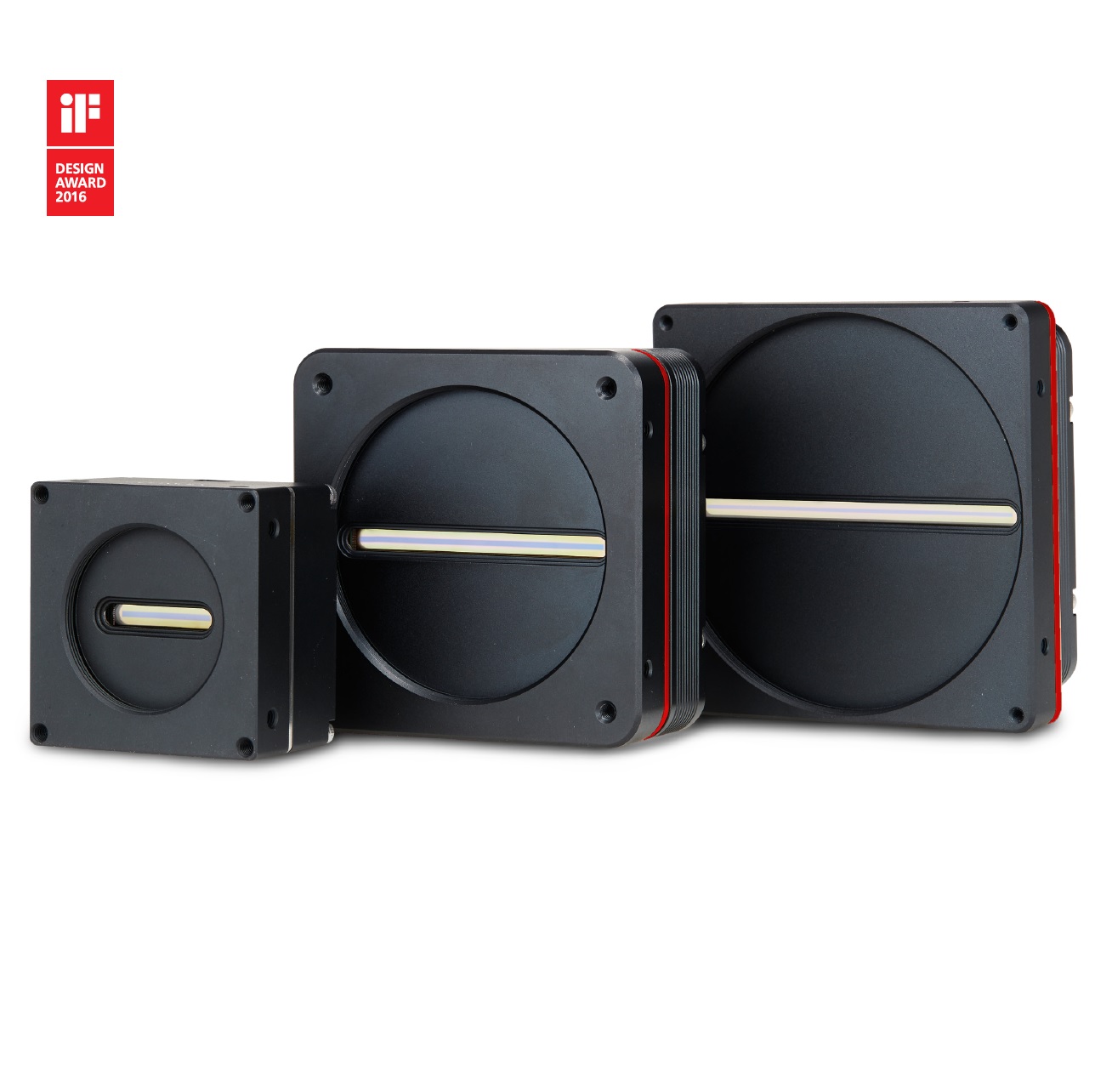

Viework’s Time Delayed Integration line scan cameras have been designed for applications where faster line rates and higher sensitivity are critical. The VT Series use Viework’s hybrid imaging technology that combines the best of both CCD and CMOS technologies to ensure fast, reliable and ultra-sensitive image acquisition. The VT Series allows for line rates up to 250KHz and resolutions up to 23360 × 256. For more information on the VT Series, click on the datasheet below.

The World's First Hybrid TDI Line Scan Sensor.

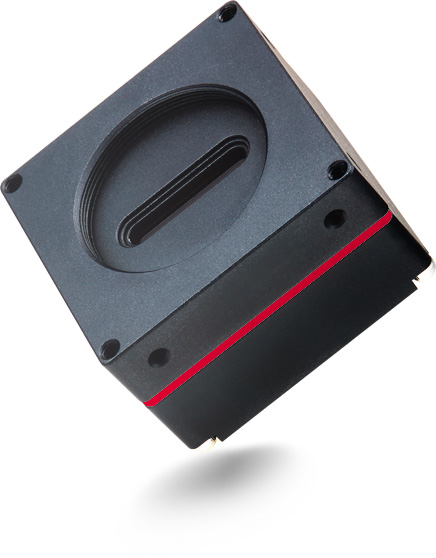

The VTC Series from Vieworks, the new hybrid colour Time Delayed Integration (TDI) line scan cameras from Vieworks, provide faster line rates and higher sensitivity than existing line scan cameras. With hybrid TDI line scan technology combining the strengths of both CCD and CMOS image sensors, the M42 mount-based VTC-2K10.5C/X/G cameras can acquire True Color images at faster line rates with up to 80 times higher sensitivity. These 2k color TDI line scan cameras are available with the Camera Link, GigE or CoaXPress interface standard to meet application-specific requirements. Featured with high speed and high sensitivity, these cameras are ideal for demanding applications such as flat panel inspection, wafer inspection, printed circuit board inspection, and high-performance document scanning. For more information on the VTC Series, click on the datasheet below.

Line Scan Cameras from NED.

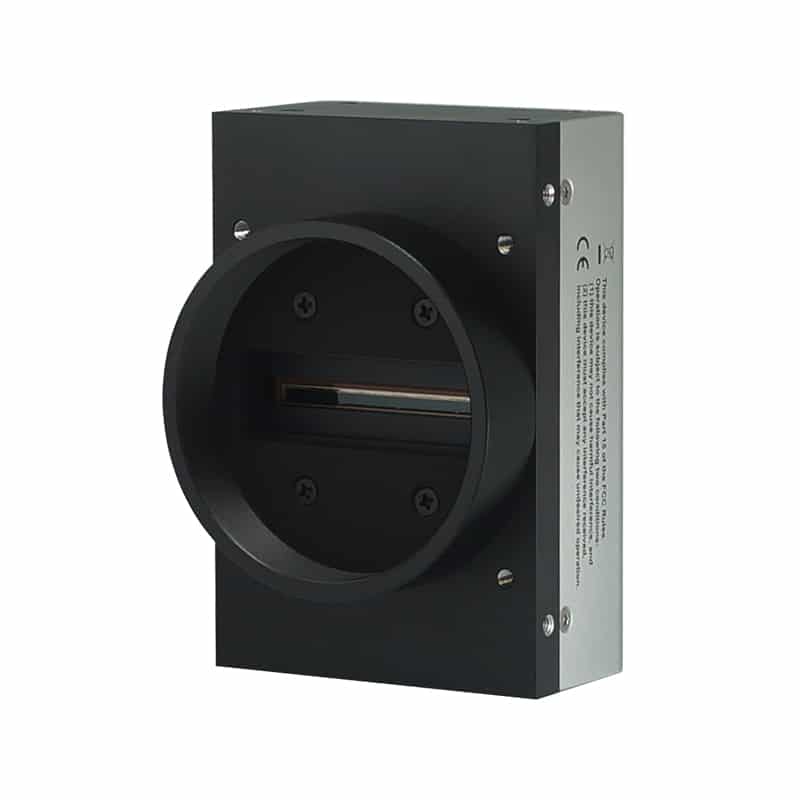

Ryugan (“dragon eye” in Japanese) is a new series of high speed line scan cameras from NED. Having all the high qualities as NED’s standard cameras, the Ryugan series adds greater speeds for high demanding applications. New models constantly being added to the Ryugan series and it now includes four GigE models. For information on Ryugan from NED, click on the datasheet below.

Line Scan Cameras from NED.

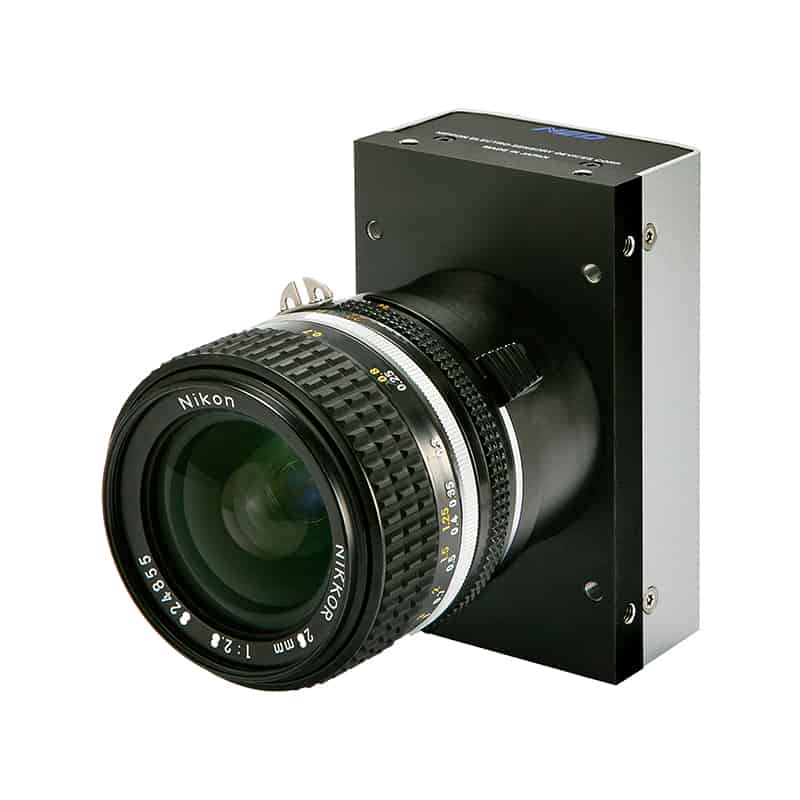

NED’s CLISBee-A series offers high sensitivity, high speed and low noise cameras at a reasonable cost. The series includes both single and dual line sensors, which makes this camera a versatile choice for many linescan contexts. With the additional flexibility of either Camera Link or CoaXpress interface options, you'll be able to integrate this camera with ease. For more information on the CLISBee-A range, click on the datasheet below.

Add colour to your solution with NED’s Rainbow series.

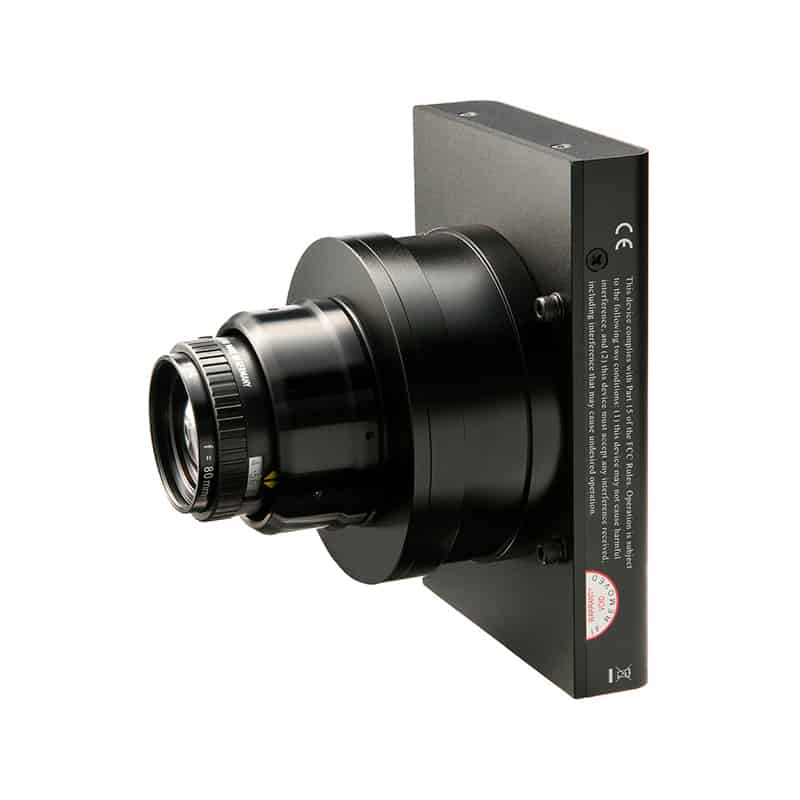

Add colour to your solution with NED’s Rainbow series. Dual line and trilinear sensor models offer dynamic line scan imaging at a great price point. The prism-based XCM3C series incorporates NED’s highly-regarded proprietary CLISBee CMOS sensor, which makes NED's Rainbow the right choice where high precision colour is a must. For more information on the Rainbow series, click on the datasheet below.

Low Price, High Performance.

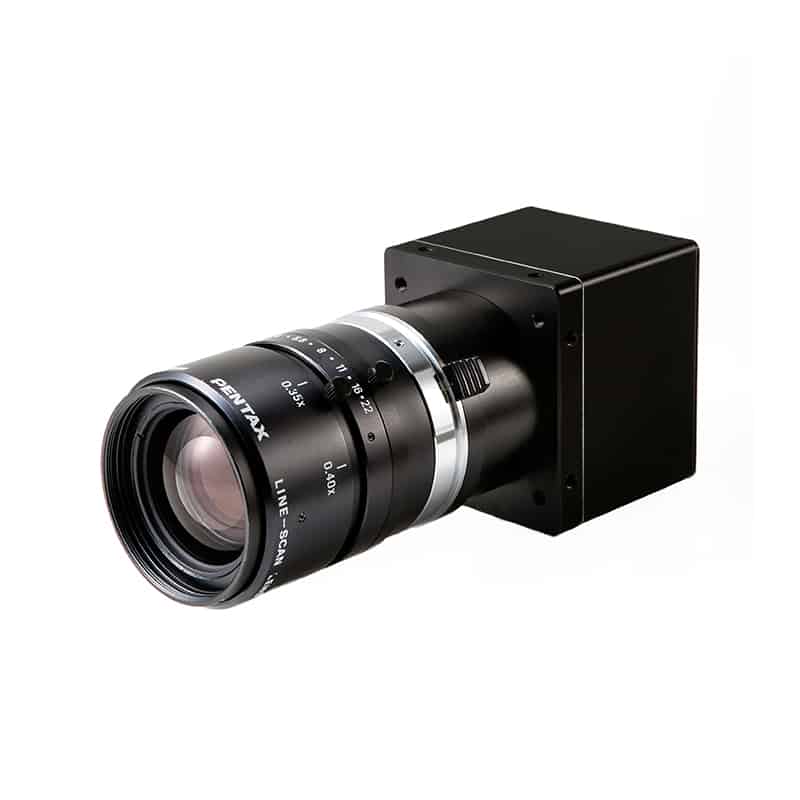

The SU series consist of NED’s lowest priced cameras using CCD sensors for price sensitive applications. Featuring Camera Link and GigE interface options, F-mount lens support, and up to 7.4k resolution, this camera is a dependable and cost-effective option for a wide array of machine vision applications. For more information on the SU Series from NED, click on the datasheet below.
