Machine Vision Lenses

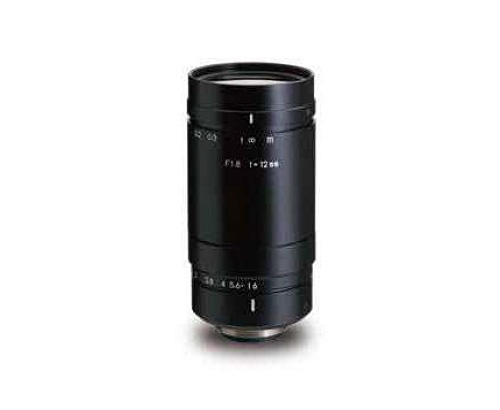

High resolution for large format sensors up to 1 inch.

The SC series is designed for 1 inch 6 megapixel cameras and can be used for sensors with a pixel size down to 3.5 µm. The SC series fills the gap between Kowa’s HC-Series and XC-Series.

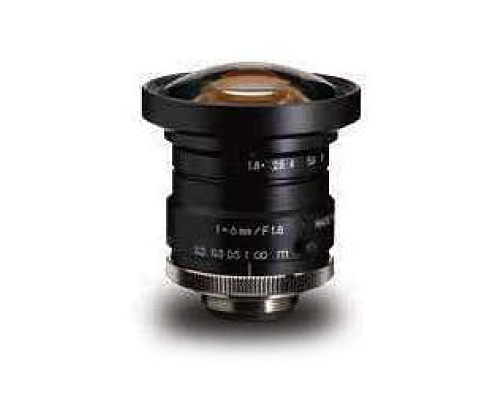

Economy solution for large sensor sizes up to 1 inch.

The HC-series can be used with 1 inch megapixel cameras. The C-Mount lenses of this series have low distortion, excellent light transmission and are also highly recommended for use with smaller format size cameras. Starting with focal length of 6mm up to 75mm, the HC Series is the perfect economical solution for 1 inch sensors with a pixel size down to 5µm.

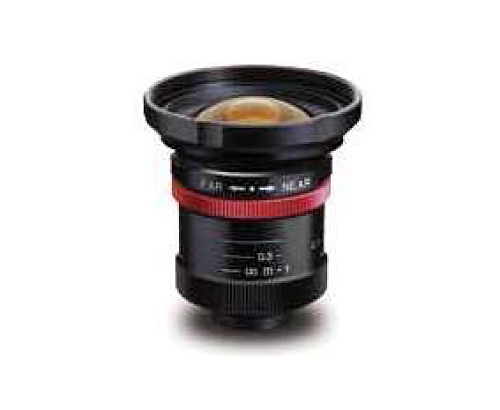

Ruggedised 1 inch lenses for harsh environments.

The HC-V-Series is made to be used in high vibration and high shock environments. With a design based on Kowa's standard 1 inch HC-Series, this ruggedised megapixel lens series is ideal for applications that require increased durability and high optical performance. The HC-V Series have a focal length ranging from 8mm up to 50mm.

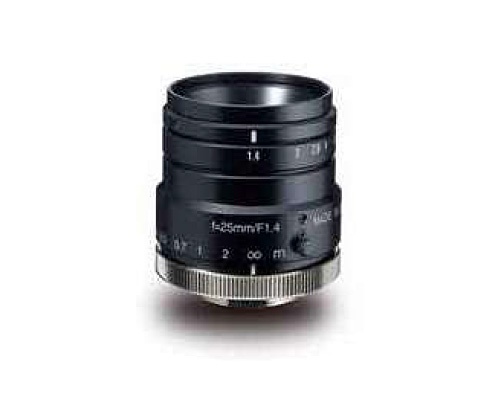

Designed for non-visible light applications up to 1 inch.

The HC-SW-series is especially designed for near-infrared and short wavelength infrared (SWIR) applications. Incorporating Kowa's special coating technology, the 1 inch format HC-SW lens series will maintain high transmission from 800nm to 2.000nm with sharp pictures from the centre to the corner. The HC-SW range start with a focal length of 8mm up to 50mm.

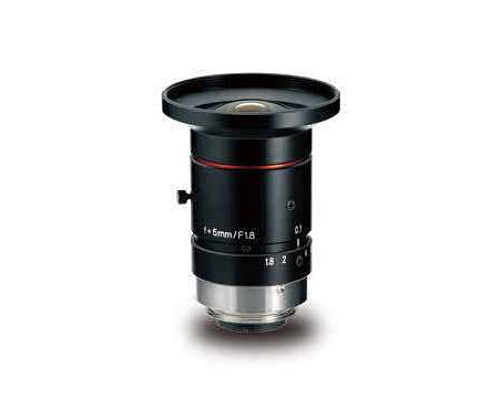

Accurate details for Machine Vision and Broadcast applications up to 2/3 inch.

With a resolution of 200 lp/mm and extra low distortion the JC10M series provides maximal performance for high-end vision systems. The JC10M range greatly reduces chromatic aberration from close distance to infinity and maintains a high transmission from visible to NIR. In addition to its use in the machine vision market, The JC10M family is very popular in broadcast applications.

Accurate details for Machine Vision and Broadcast applications up to 2/3 inch.

With a resolution of 200 lp/mm and extra low distortion the JC10M series provides maximal performance for high-end vision systems. The JC10M range greatly reduces chromatic aberration from close distance to infinity and maintains a high transmission from visible to NIR. In addition to its use in the machine vision market, The JC10M family is very popular in broadcast applications.

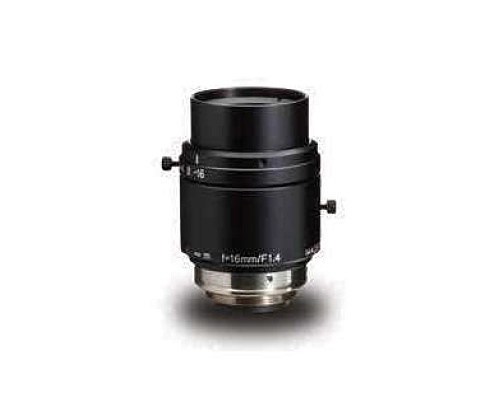

Designed for industrial applications in harsh environments up to 2/3 inch.

The JC5M2-Series is the perfect lens series for high-end applications with sensors of 3.5 µm, with focal lengths starting at 12mm up to 35mm.

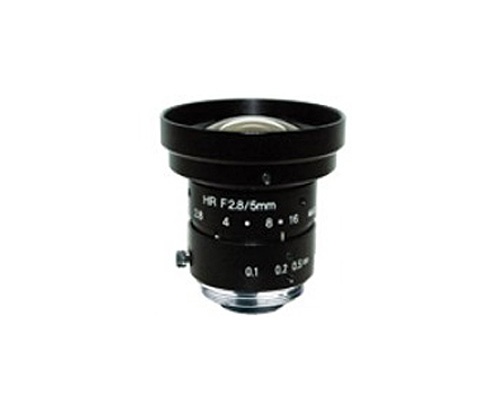

Popular lens series with low distortion for sensors up to 2/3 inch.

The JCM and NCM Series offers high resolution (120 lp/mm) and utilises the floating mechanism system. This C-Mount lens is an economic solution for a variety of machine vision applications.

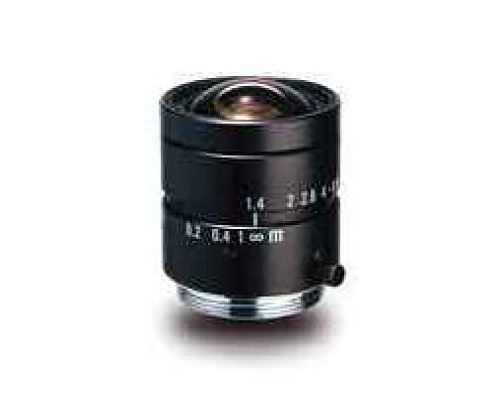

Excellent cost performance with low distortion.

The JC Series is made of compact, lightweight and durable lenses with high resolution and low distortion. They’re an excellent choice for applications for tight budgets that still need high performance. The JC Series starts with a focal length of 6mm up to 100.

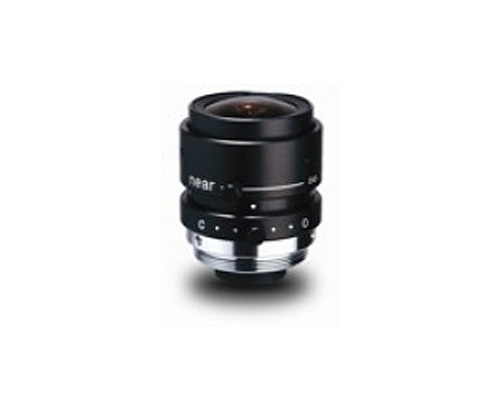

Compact, lightweight wide angle lenses for up to 1/1.8 inch sensors.

The NCL Series will be a great choice for applications that need wide field of views and good resolution accuracy with great cost performance. The NCL starts with a focal length of 3.5mm up to 12mm.

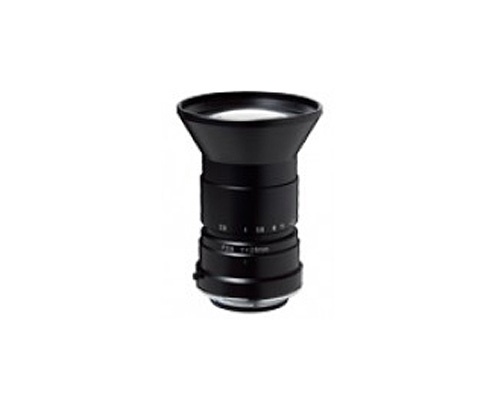

Large format lenses for line scan applications.

The LF Series has been designed to optimise the performance of line scan applications for large format image sizes. With their ultra-low distortion, F-mount compatibility and wide range of focal lengths, the LF Series is the perfect choice for line scan cameras.

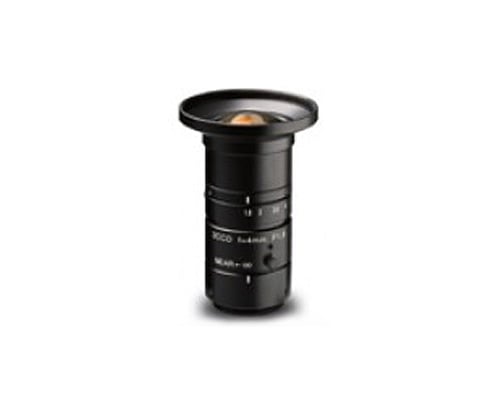

For industrial 3CCD colour line scan cameras.

The CLS Series is the supplement of the well-known LF Series. It’s been designed to support 3CCD colour line scan cameras, with line sensors of up to 30mm. The supported focal lengths range from 28mm to 50mm.

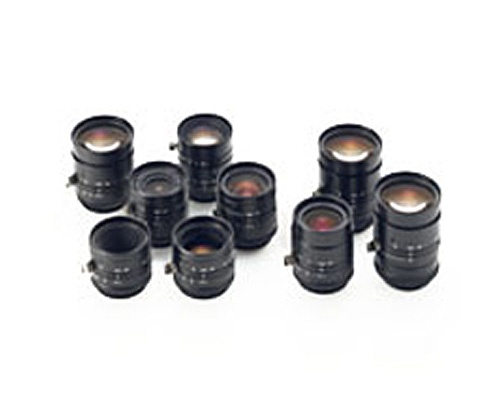

Compact, cost effective lenses for up to 2/3 inch sensors.

Featuring a wide variety of focal lengths, adjustable iris and focus, with support for a wide range of extension tubes and rear converter lenses, the SV-V series is a good match for standard factory automation. The supported focal lengths range from 3.5mm to 100mm.

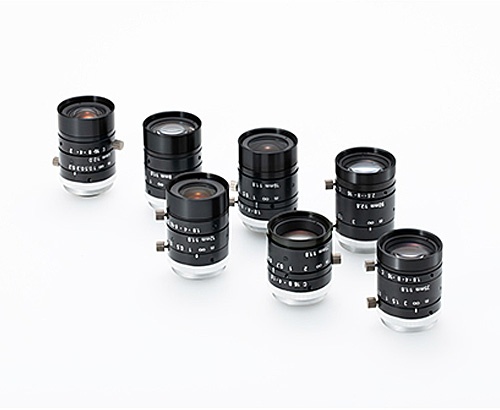

Compact lenses with excellent resolution and contrast for up to 1/1.8 inch sensors.

The VS-VM series has been designed to deliver the best possible image in a compact lens. The VS-VM series provide an excellent resolution and high contrast in a wide range of focal lengths that range from 6mm to 50mm.

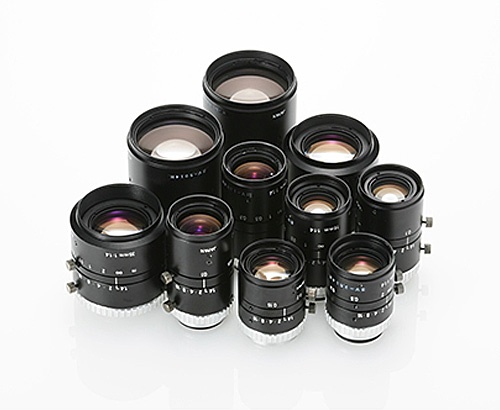

Delivering precise results for sensors up to 2/3 inch.

The SV-H series aims to deliver the most accurate resolution with the brightest possible F number for even poorly lit environments. Designed to suit a large range of working distances, starting with focal lengths of 6mm up to 100mm.

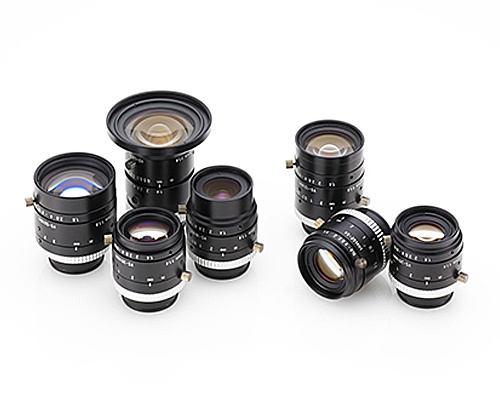

Precise results for large sensor sizes up to 1 inch.

The VS-H1 series is the upgraded version of the SV-H series to increase the sensor size support to 1 inch. The lenses are designed to minimise distortion while maintaining a high contrast in order to deliver best possible image across a broad range of resolutions, starting from 6mm up to 100mm.

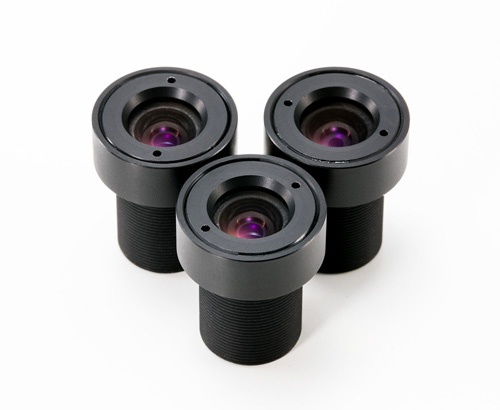

High quality lenses for board level cameras with M12 mount.

The VS-B series features an S-mount capable lens compactly designed for use with board cameras, supporting up to ½ inch sensors.

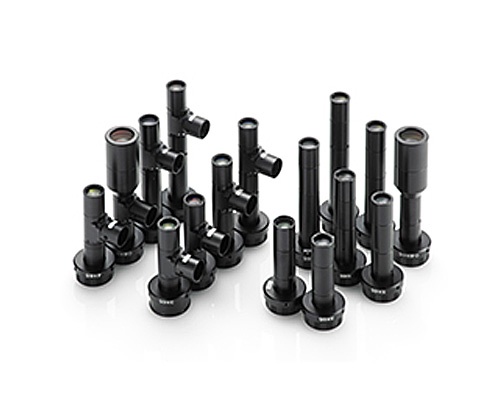

Telecentric Lenses for 2/3 inch sensors.

The VS-TC series is compact and lightweight, with working distances ranging from 40mm to 340mm, producing a clear, distortionless and high contrast image. Telecentric lenses are a great choice for measurement and inspection applications that require high accuracy.

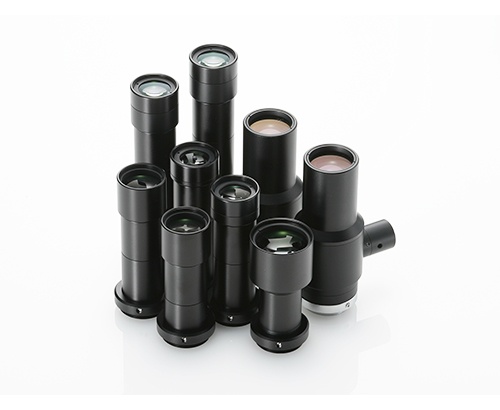

Telecentric lenses for close-up distances.

The VS-TCH series was designed for use at 65mm or 110mm working distance. It is a great choice for any machine vision application needing high resolution and distortionless images.

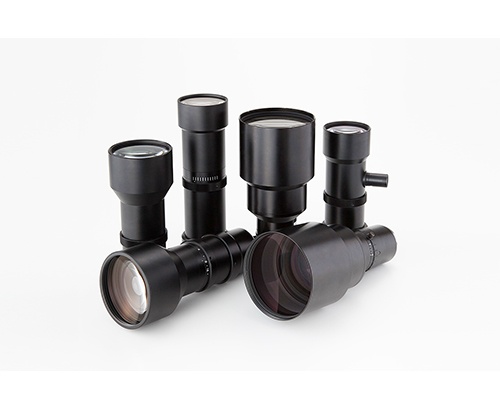

Telecentric lenses for large sensor formats up to 1.1 inch.

The VS-TCM series is made to suit high resolution cameras with larger sensor formats. These lenses are suited for Automated Optical Inspection (AOI) applications, high accuracy inspection and measurement applications. The adjustable aperture allows the Depth of Field and contrast to be set to your application’s needs.

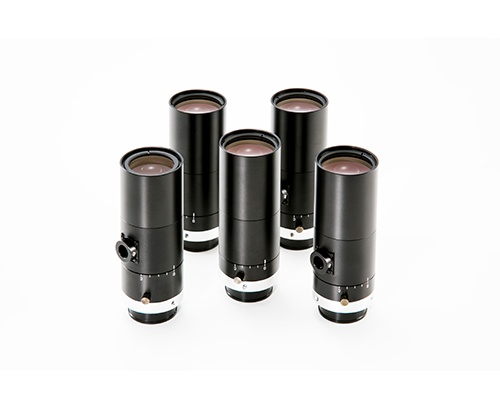

Ultra-high resolution telecentric lenses.

The VS-TCT series is designed to achieve the highest possible resolution in our range of telecentric lenses. With 1.67um resolution, the user will obtain an excellent image accuracy. Both normal and coaxial lighting ready models are available.

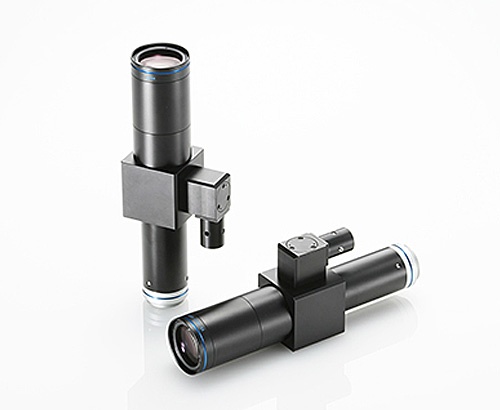

High magnification for microscopy applications.

The VS-TM series is able to achieve 20x magnification with a high 0.23 numerical aperture, making it a great choice for close-up inspections.

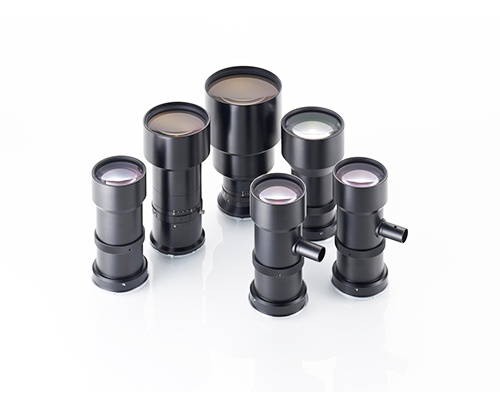

Large format Telecentric lenses.

The VS-LTC series has been specifically designed for large format line scan sensors. It supports diameters ranging from 21mm to 35mm.

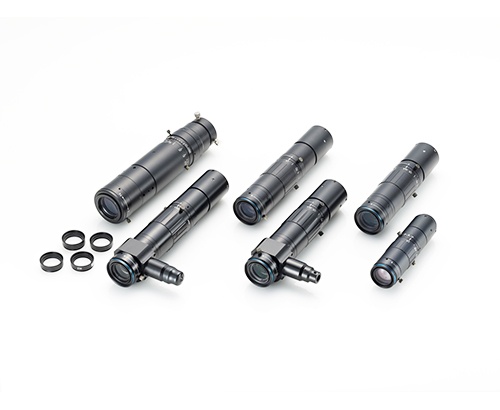

Compact zoom lenses.

All VSZ models were designed to be compact in size and have a long working distance. The VSZ series offers a wide range of magnifications, ranging from 0.1x to 10x, with support for sensors up to 2/3 inch.

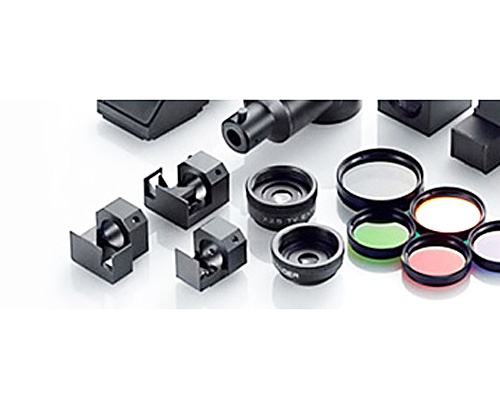

Extending the functionality of the lens.

VST offer a full range of accessories to enhance the functionality of their lenses. The range of accessories include colour filters, UV cut filters, IR cut filters, extension tubes and prisms.

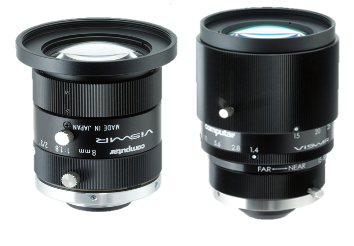

Visible SWIR Fixed Focal Length Lens Series

The ViSWIR Lite Series achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light. The application of a multilayer coating on the metal lens parts makes it possible to minimize the negative lighting effects.

The broadband anti-reflection coating is applied on all ViSWIR lens elements, allowing high and stable transmission at a super-wide wavelength range: 400nm to 1,700nm.

The ViSWIR series delivers a high-quality image using the latest Visible + SWIR sensors. This high-performance lens is designed for non-visible range imaging allowing diverse applications into multiple markets, including Agriculture, Medical, Remote Sensing, etc.

For more information, click on the datasheet below.

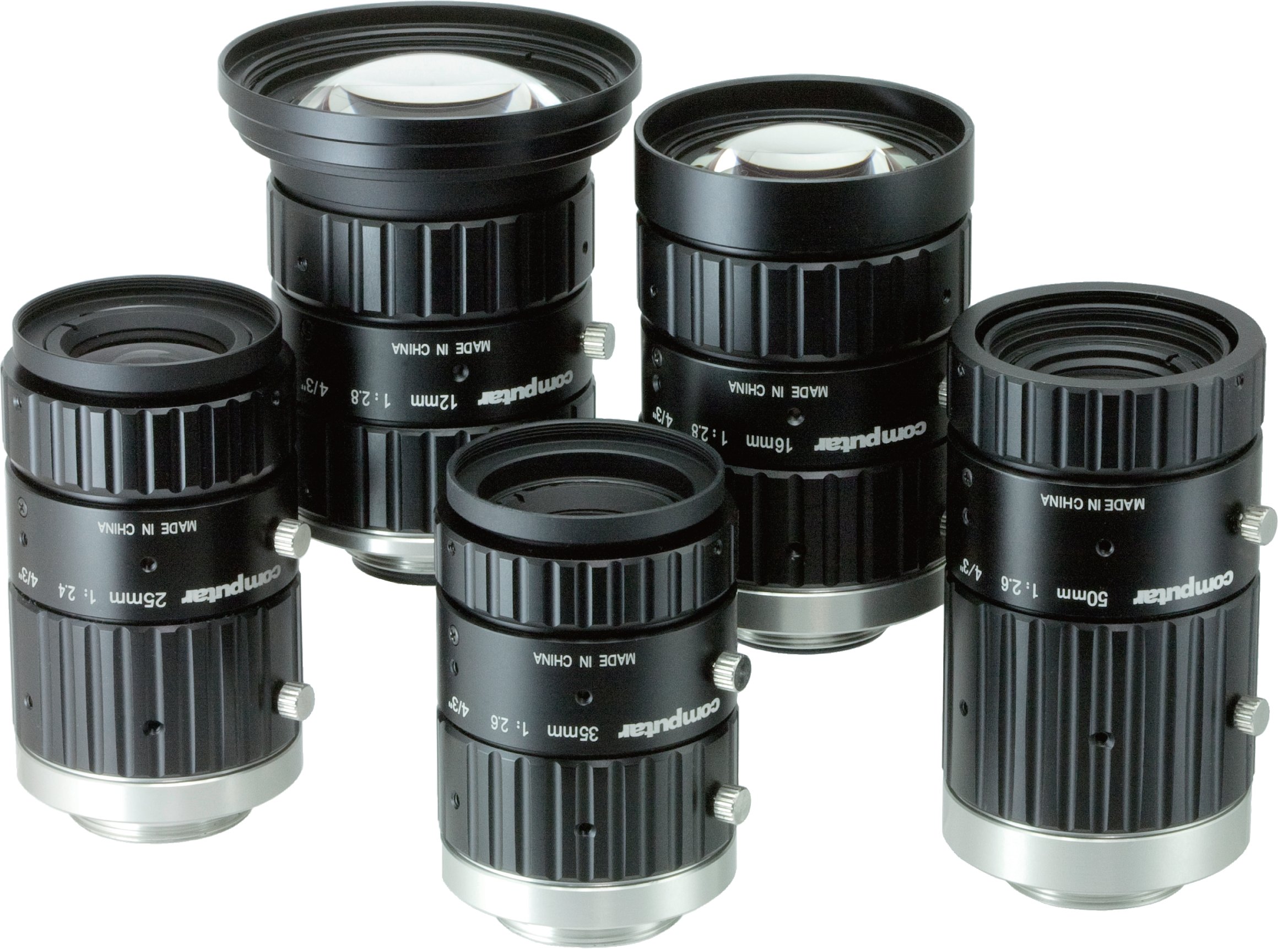

1.4” Compact 45 Megapixel C-Mount Machine Vision Lens Series

The MPT Series is a compact 45MP, 1.4" C-Mount Lens Series engineered to optimize the capabilities of the latest industrial CMOS sensors. The 1.4" Ultra-high resolution Machine Vision Lenses are ultra-low distortion in a compact design available in fixed focal lengths: 12mm, 16mm, 25mm, 35mm, and 50mm. C-Mount for large format sensor.
For more information, click on the datasheet below.

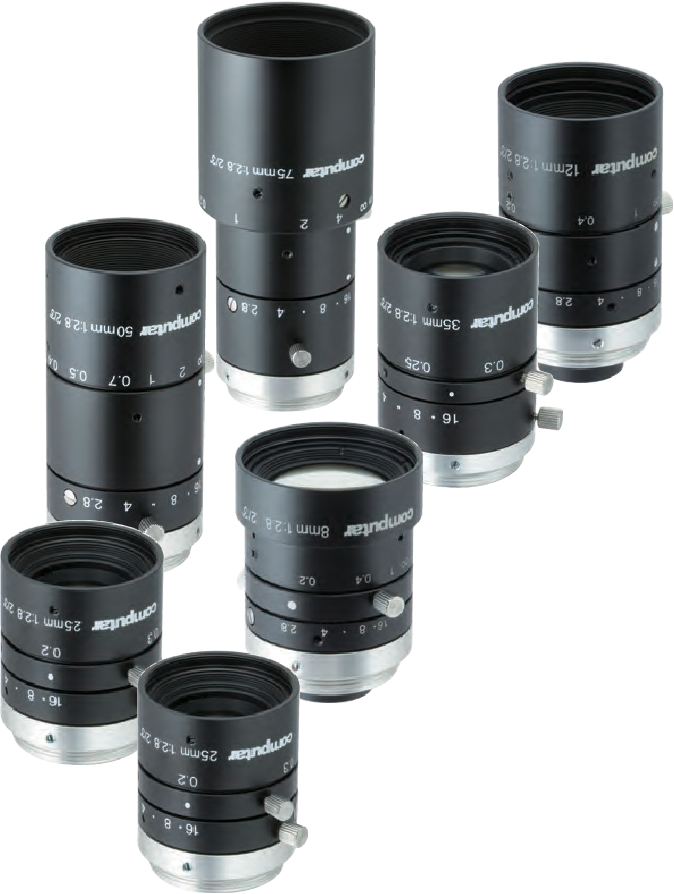

2/3" 6 Megapixel Ultra-low Distortion Machine Vision Lens Series

The MPW3 Series has a fixed focal length range from 5mm to 75mm and a resolution of 8 megapixels at max. 2.74μm.
The C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
For more information, click on the datasheet below.

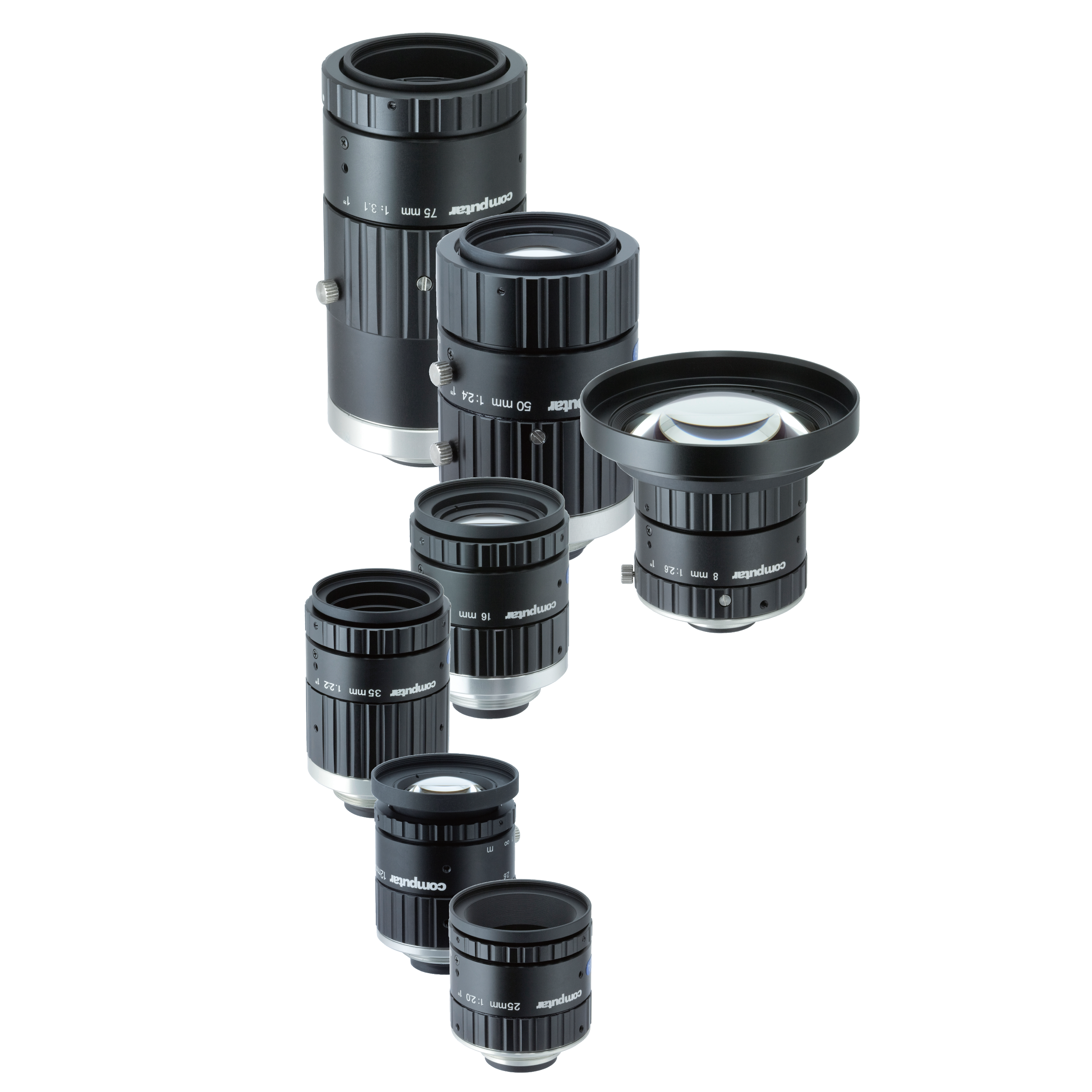

1” 20 Megapixel Super High-Resolution Fixed Focal Machine Vision Lens Series

Computar’s Machine Vision lineup includes the MPZ Series featuring super high-resolution operation with precise accuracy. Computar offers an extensive selection of models suitable for various sensor types, and almost any application.
For more information, click on the datasheet below.

1.1" Ultra-High-Performance Machine Vision Fixed Focal lenses.

The 12MP Fixed Focal Lens with f/1.8 Aperture Series from Tamron is a low-distortion aspherical megapixel lens series compatible with C-Mount cameras that have sensors up to 1.1". They can support images up to 12 megapixels (when used with a 1.1" sensor capable of 12MP resolution). These fixed focal lenses are designed for industrial applications such as factory automation, machine vision, traffic monitoring, Intelligent Transport Systems (ITS), and surveillance. For more information, please click the datasheet below.

1/1.2", 2/3" Ultra-High-Performance Machine Vision fixed focal industrial Lenses (ø29mm).

The Compact 5MP C-Mount Lens Series from Tamron is designed for use in machine vision applications. This addition to Tamron's selection of industrial lenses is suitable for cameras with 1/1.2" and 2/3" sensors. Features of the Compact 5MP C-Mount Lens include a trim barrel, close-focus imaging, locking/manual focus and iris functions, and consistent contrast and resolution quality from the centre to the edge of the lens. Compared to earlier models, rotational torque has been increased, lock-screw positions now total four instead of three, and the lock-screws have been recessed for easier installation in tight quarters. For more information, please click the datasheet below.

Ultra high-performance C-mount lenses for 2/3" sensors.

The Tamron C-Mount f/1.8-22 2/3" Fixed-Focal Lens Series is specifically designed for use with cameras utilizing 2/3" sensors. The aperture ranges from a bright f/1.8 and closes down to f/22. The focus and iris lock screws ensure that the object being captured is not out-of-focus or incorrectly exposed due to vibration or environmental factors. - Designed to match pixel pitch 2.5 µm sensors, the lens realizes high-resolution from the centre to the periphery (image height 90%) - Minimum object distance (MOD) of 3.93" - Low distortion - Six iris blades maintain the same performance as eight blades through a unique iris blade design - Optimized focus lock screws - Metal mount and components for high durability - Vibration and shock-resistant design maintains the optical performance - Innovative mechanics enable the focus rotation to be larger, reducing troublesome focus adjustment - Compact size suitable for versatile applications For more specification on this product, click on the Datasheet below.

6 Megapixel, Fixed Focal Lenses Designed for 1/1.7” Sensors.

The M117FM08 C-Mount Fixed Lens from Tamron is designed for use with cameras that have 1/1.7 and 1/1.8" sensors. This fixed lens features a 52.2° maximum horizontal field of view. It has manual focus and iris operation with locking screws. - Aspherical lens - f/2.4-16.0 - 17.53mm back focal length (in air) - 0.33' to infinity focal range - Visible light wavelength For more specification on this product, please click on the below Datasheet.

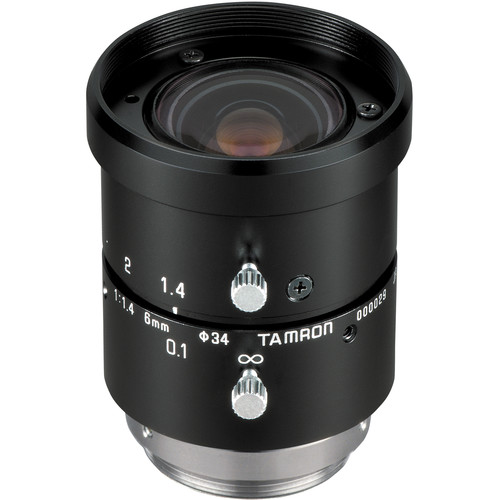

Low-Cost, Compact C-mount Lenses Designed for 1/1.8" Sensors.

The Tamron C-Mount Fixed Focal Lens Series is compatible with 1/1.8" cameras. Thanks to optical design technology, this compact lens offers uniform resolution and contrast from centre to corner. The locking screws can be positioned in three locations for easy installation. - Higher-quality image capture at close distance range - Improvement in image quality at close range - MOD of 0.3' / 0.1 m - Sophisticated optical design to boost image quality - Uniformity in resolution and contrast from centre to corner - Compact form factor - Three positions provided for the locking screws locations (focus and iris respectively) for ease of installation - High-precision, high-quality mechanical construction For more specification on this product, please click the below datasheet.

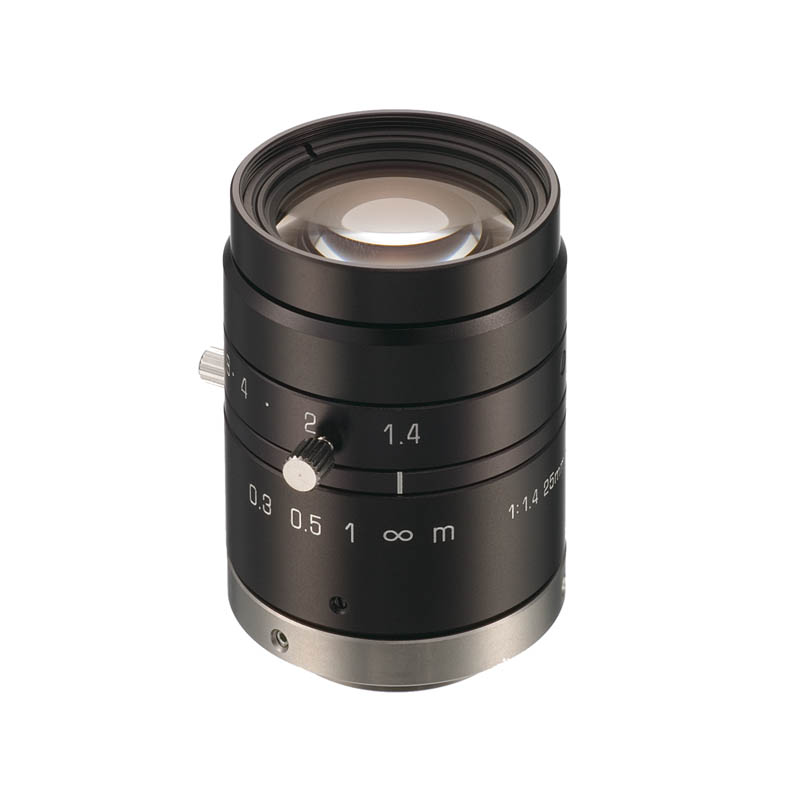

3 Megapixel Low-Distortion Machine Vision Lenses for up to 2/3" Sensor Sizes.

Designed for use with 1.3 and higher megapixel cameras, Tamron's 23FM-SP lens series employs superior optics to provide outstanding corner to corner performance while thoroughly compensating for minimal distortion. With a minimum focusing range of less than 015m, this lens is particularly suited for use with machine vision and pharmaceuticals or for similar applications requiring highly detailed close-up image capture. Designed specifically for use with 1.3 megapixel cameras and up, this high resolution lens provides outstanding corner to corner optical performance while thoroughly compensating for minimal distortion. With a minimum object distance of only 0.15m, this lens is ideal for use in pharmaceutical, semiconductor, factory automation or any application requiring highly detailed close up image capturing. A compact design ensures compatibility with various inspection and automation machinery. Features an iris and focus ring lock mechanism to prevent slippage when used on vibrating factory equipment.   For more specification on this product, please click the below Datasheet.

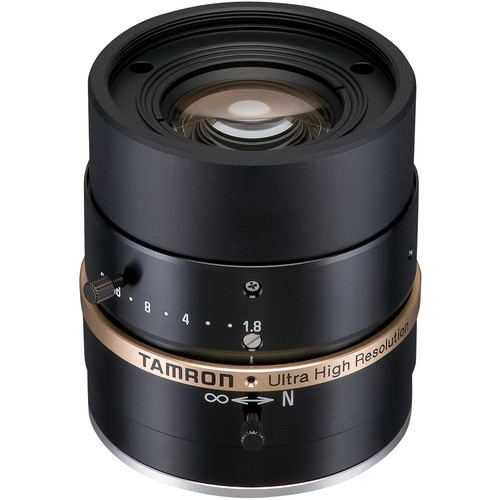

High Performance 1.3 Megapixel Machine Vision Lenses for 2/3" Sensors.

Built for factory automation and machine vision applications, Tamron's f/1.8 High Resolution C-Mount Lens features a solid mechanism able to withstand long periods of use in an environment experiencing significant vibrations. Utilizing superior optics in a compact size, this high resolution lens is designed to fit today's machinery dimensions and needs only a minimum object distance of 0.15m to achieve outstanding image clarity. Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation. Features a compact design to fit the dimensional requirements of today's machinery. Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance focusing range less than 0.44m. For more specification on this product, please click on the below Datasheet.

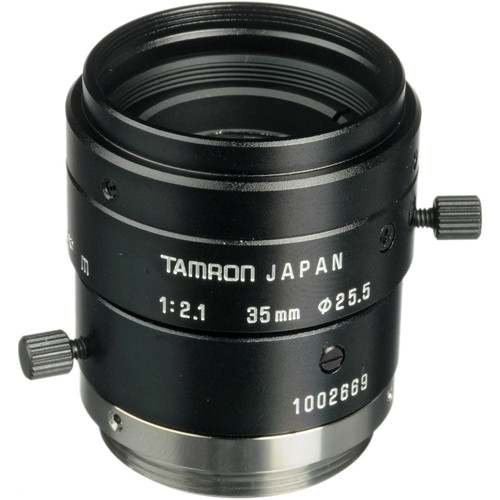

High Performance Fixed-Focal Lens for 2/3" Sensors.

Built for factory automation and machine vision applications, Tamron's 23FM-L Series features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today's machinery dimensions and needs only a minimum focusing range of 0.3m to achieve outstanding quality. Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations. Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation. Features a compact design to fit the dimensional requirements of today's machinery. Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.3m.   For more specification on this product, please click on the below Datasheet.

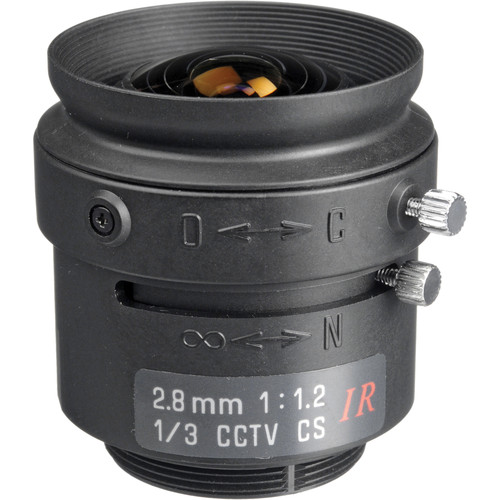

Infrared-Compatible Lens Series from Tamron.

The Tamron IR-Corrected series consists of manual CS-mount lenses designed for 1/3-inch CCD Day/Night cameras. Special glass and advanced anti-reflective coatings provide accurate auto focus in IR and visible light spectra. It has a very fast f/1.2 maximum aperture so it can be used in low light areas for colour images. The Tamron infrared lenses are made with special glass composites and advanced coatings. These advanced features allow Day/Night cameras to auto focus accurately in infrared and visible light spectra. This lens has a wide f/1.2 maximum aperture. It will produce sharp colour images even in low light conditions. IR-corrected fixed-focal lenses are cost-effective solutions for day/night surveillance and infrared machine vision applications. For more specification on this series, please click on the below datasheet.

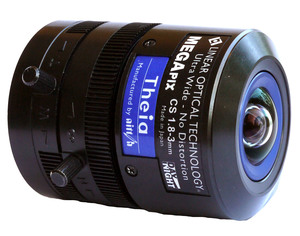

Ultra Wide. 4K Compatible. Varifocal Benefits.

Theia's SL183 (CS mount) and ML183 (C mount) lenses provide ultra wide field of view without distortion. These are varifocal lenses allowing the user to optimize the field of view from wide angle to ultra wide. The lenses incorporate patented Linear Optical Technology® which allows an ultra wide field of view without barrel distortion unlike other wide angle lenses not including Theia's technology. This rectilinear design allows increased resolution at the edges of the image thus increasing the probability of detection. Available in C-mount and CS-mount configurations. For more information on the SL183/ML183 lenses, click on the datasheet below.

Sharp 4K Imaging with Varifocal Benefits.

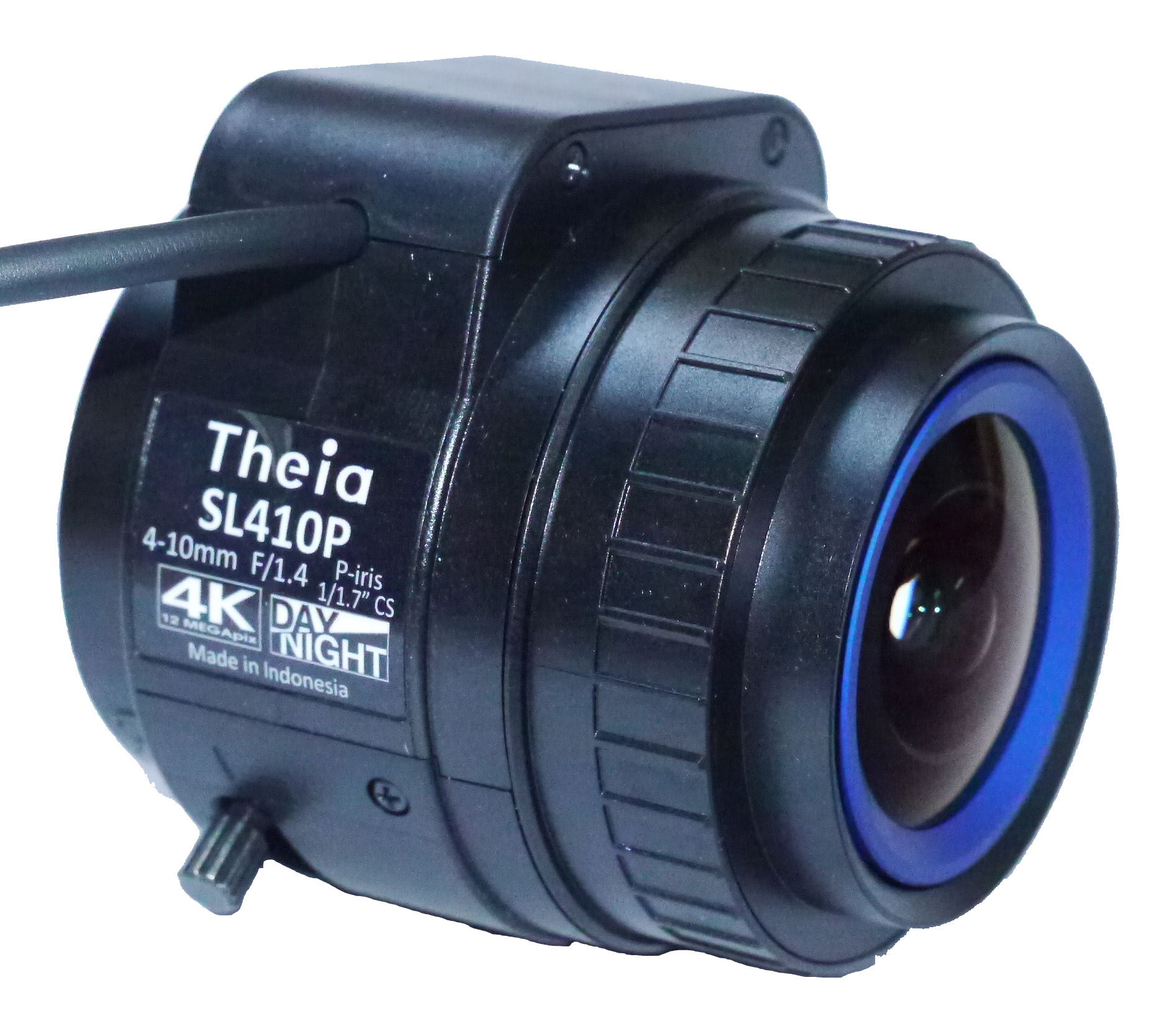

Theia's standard focal range SL410 (CS mount) and ML410 (C mount) lens is designed for true 4K resolution. With varifocal length from 4-10mm and superior imaging performance, the SL410 and ML410 can be used with image sensors from 1/2.3" up to 1/1.7". The lens is designed to be very compact so it can be used in small enclosures such as 4" domes. Available in C-mount and CS-mount configurations. For more information on the SL410/ML410 lenses, click on the datasheet below.

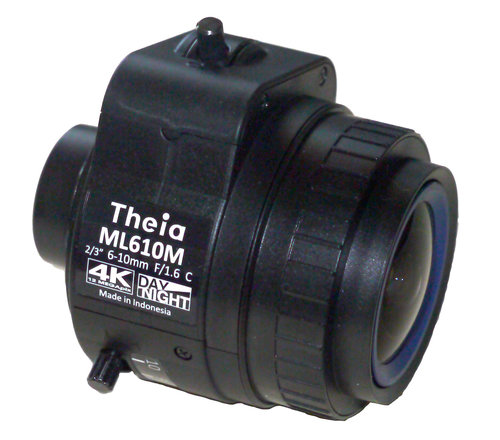

2/3" Varifocal with up to 4K Resolution.

Theia’s ML610M is a 12 megapixel resolution, varifocal lens with 6-10mm focal range providing from 51 degrees up to 87 degrees horizontal field of view on the 2/3" sensor. The 6-10mm varifocal lens covers focal lengths of 3 prime lenses - a 6mm, 8mm and 10mm. This provides the flexibility to dial in the focal length and field of view as needed for the specific application, making a modular, multi-product inspection line possible. Available in C-mount configuration. For more information on the ML610M lens, click on the datasheet below.

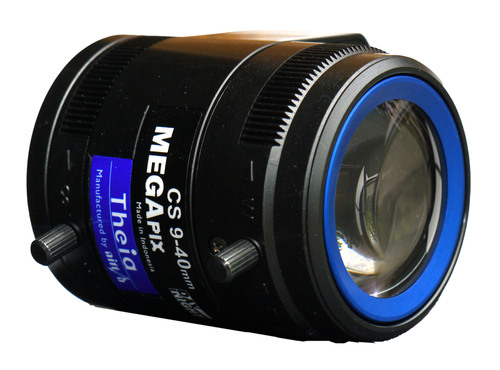

Theia's Varifocal Telephoto.

Theia's 4K compatible varifocal telephoto lens can be used for long distance surveillance and license plate recognition. It is designed for sensors such as 1/2.5" 5MP and 1/2.3" 4K resolution. The excellent IR correction allows Day/Night operation without needing to refocus when switching to IR illumination. The lens can be adjusted for focal lengths from 9-40mm for unobtrusive security. Available in CS-mount configuration. FOr more information on the SL940, click on the datasheet below.

4K Resolution Telephoto Lens.

Theia's true 4K resolution telephoto lens for long distance security surveillance and license plate recognition (LPR) applications. With varifocal length from 12-50mm and superior imaging performance, the SL1250 is designed for image sensors from 1/2.3" up to 1/1.7". The lens is designed to be very compact so it can be used in small enclosures such as 4" domes. Available in CS-mount configuration. For more information on the SL1250M, click on the datasheet below.

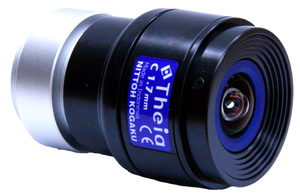

Theia's Ultra-Wide, Value-Priced Lens.

Theia's SY110 (CS mount) and MY110 (C mount) series lenses provide an ultra wide field of view at a value price point. These lenses use Theia's patented Linear Optical Technology® which allows an ultra wide field of view with low barrel distortion unlike other wide angle lenses that do not include Theia's technology. The SY110 and MY110 lenses are designed to allow the installer to take full advantage of the high resolution of HD and multi megapixel cameras. The lens can be used on cameras up to three megapixel resolution giving a crisp image from edge to edge. For more information on the SY110/MY110, click on the datasheet below.

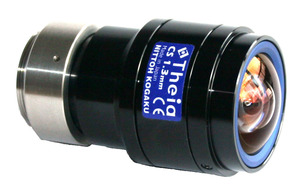

Theia's Widest Angle Lens.

Theia's SY125/MY125 series lenses provide the widest field of view with low distortion available in the market. The lenses incorporate patented Linear Optical Technology® which allows an ultra wide field of view with low barrel distortion unlike other wide angle lenses that do not include Theia's technology. Similar to Theia's other lenses, the SY125/MY125 series is a high quality lens designed to allow the installer to take full advantage of the high resolution of HD and multi megapixel cameras. The lens can be used on cameras up to five megapixel resolution giving a crisp image from edge to edge. Available in CS-mount and C-mount configurations. For more information on the SY125/MY125 lenses, click on the datasheet below.

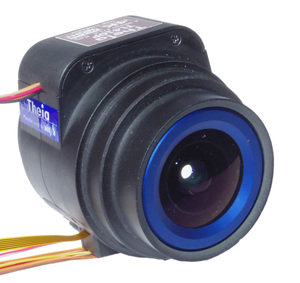

Theia's 4K Mid Focal Range Lens.

Theia's standard focal range TL410 lens is designed for true 4K resolution. This is the motorized version of the SL410 lens. With varifocal length from 4-10mm and superior imaging performance, the TL410 can be used with image sensors from 1/2.3" up to 1/1.7". It includes motors for zoom and focus, IR cut module, and limit indicators for zoom and focus ring positions (contact us for options with different motor configurations). The lens is designed to be very compact so it can be used in small enclosures such as 4" domes and bullet style cameras. Available in CS-mount and D25 board mount configurations. For more information on the TL410, click on the datasheet below.

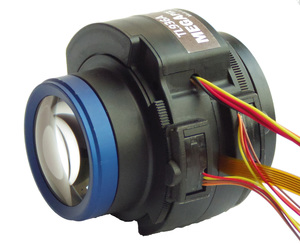

Theia's Motorized Telephoto Lens.

Theia's 4K compatible varifocal telephoto lens can be used for long distance surveillance and license plate recognition. This motorized version of the SL940 lens includes focus and zoom motors, IR cut filter, and photo interrupter limit switches for the focus and zoom ring positions. It is designed for sensors such as 1/2.5" 5MP and 1/2.3" 4K resolution. This compact lens is designed to be built into dome and bullet cameras. Motors allow the user to remotely zoom and focus for optimal image quality without any physical interaction with the lens. Similar to Theia's other lenses, the TL936 is a high quality lens designed to allow the installer to take full advantage of the high resolution of 4K resolution, HD, and multi megapixel cameras. The excellent IR correction allows this lens to be used with IR illumination without the need for refocusing the camera when switching to night mode. Available in CS-mount configuration. For more information on the TL936, click on the datasheet below.

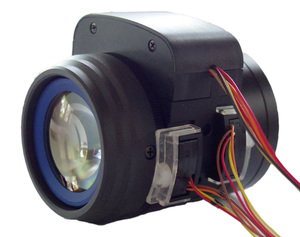

Theia's Motorized 4K Telephoto.

Theia's true 4K resolution telephoto lens for long distance security surveillance and license plate recognition (LPR) applications. With varifocal length from 12-50mm and superior imaging performance, the TL1250 is designed for image sensors from 1/2.3" up to 1/1.7". The lens includes motors for remote operation of focus and zoom, IR cut filter, and focus and zoom limit switches. The lens is designed to be very compact so it can be used in small 4" domes and bullet style cameras. Similar to Theia's other lenses, the TL1250 series is a high quality lens designed to allow the installer to take full advantage of the high resolution of 4K resolution, HD, and multi megapixel cameras. The lens can be used on cameras up to 12 megapixel resolution giving a crisp image from edge to edge. Available in CS-mount or D25 board mount configurations. For more information on the TL1250 lens, click on the datasheet below.

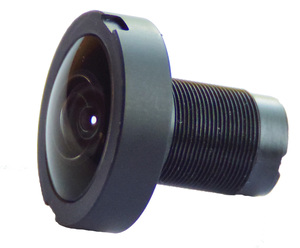

Theia's 4K Resolution Fisheye Lens.

Theia's TY180IR fisheye is designed for integration into 360° cameras used for small room surveillance in schools, office spaces, and stores. The lens allows the user to see the entire hemisphere on a single 1/2.3" 4K resolution sensor. The TY180IR is uniquely 12 megapixel resolution and day/night corrected. The TY180IR lens gives a full circle image on the 1/2.3" and larger sensor sizes. This allows the user to see a full hemisphere on the sensor. Theia does not provide any software for dewarping the image as that is typically developed by the camera manufacturer. Available in M12 board mount configuration. For more information on the TY180IR fisheye lens, click on the datasheet below.
