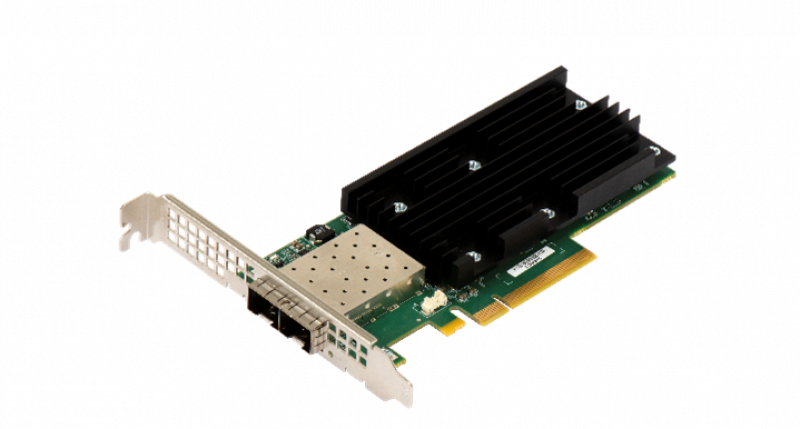

Smart network interface cards for efficient high-bandwidth GigE Vision acquisition
Matrox® GevIQ is the industry’s first network interface card (NIC) offering generic GigE Vision® acquisition offload at speeds up to 25 Gigabits/s per port. With GigE Vision packet processing performed directly onboard, Matrox GevIQ boards enable capture from one or more cameras without any image data loss.
GigE Vision is a camera interface standard that delivers rapid image transfer over distances up to 100 m using standard copper, and up to 5,000 m using standard fiber-optic Ethernet cabling. The standard supports physical links from 1 to 25 Gigabit Ethernet (GbE). Use of 10 and 25 GbE by cameras are gaining industry popularity as they are ideal for vision applications requiring the utmost imaging speed and resolution. Machine vision applications requiring cameras with a 10+ GbE interface can, however, be challenging—they benefit from a high data transmission rate but suffer from increased demands on the host system, resulting in corrupted or dropped image frames, and increased processing latency.
Matrox GevIQ NICs provide a more versatile and widely compatible alternative to custom-built or proprietary solutions based on 10+ GbE. The board is equipped with two 25 GbE ports and acquires from these with very little host CPU usage. Multiple 1, 2.5, 5, or 10 GbE cameras can be aggregated at each port for a total of up to 32 input sources. Support of the standard SFP28 connector allows users to select from standard direct attach copper (DAC) or fiber-optic Ethernet cables for their specific installation requirements.
Check out the datasheet for more information.Download Datasheet Contact Sales

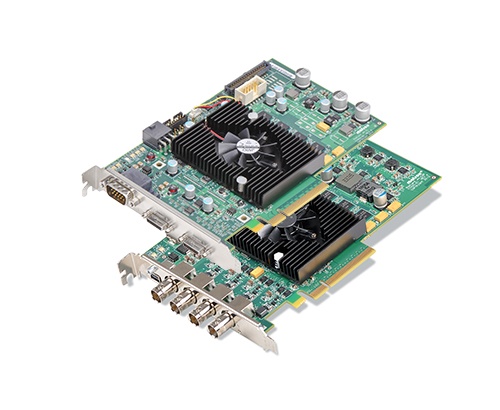

Cost-effective solution with high performance.
Matrox Radient eV is a family of cost-effective high-performance frame grabbers supporting Camera Link, CoaXPress and Camera Link HS interface standards.Download Datasheet Contact Sales

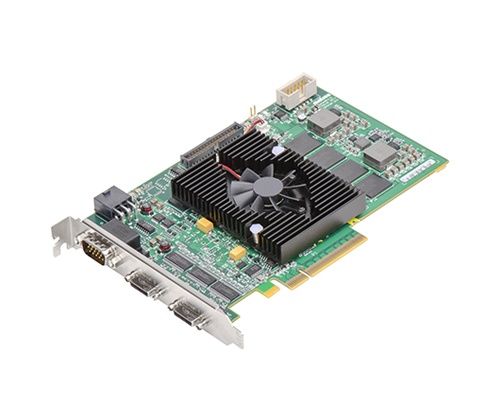

HFPGA processing offload for the fastest applications.
The Matrox RadientPro CL is a vision processor board supporting the highest Camera Link® acquisition rates with FPGA-based processing offload capabilities customisable by Matrox or using the optional Matrox FPGA Development Kit (FDK).Download Datasheet Contact Sales

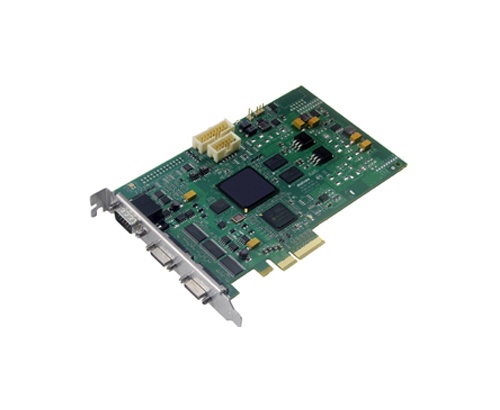

Cost-effective frame grabbers with great interface range.
Matrox Solios is a family of cost-effective frame grabbers for Camera Link image acquisition based on high-performance PCIe.Download Datasheet Contact Sales

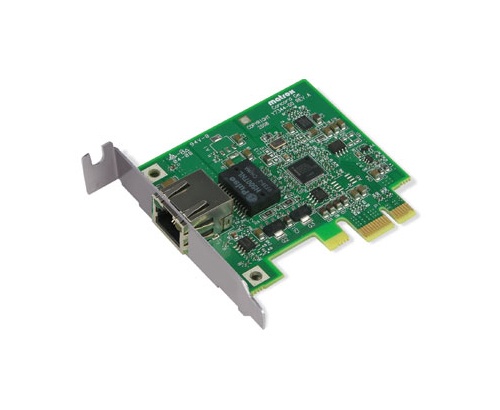

GigE Vision or IIDC support through Matrox Imaging Library (MIL).
Matrox Concord is a family of Gigabit Ethernet network interface cards (NICs) and IEEE 1394b adaptors that are pre-licensed for use with the Matrox Imaging Library (MIL) drivers for the GigE Vision and IEEE 1394 IIDC protocols.Download Datasheet Contact Sales

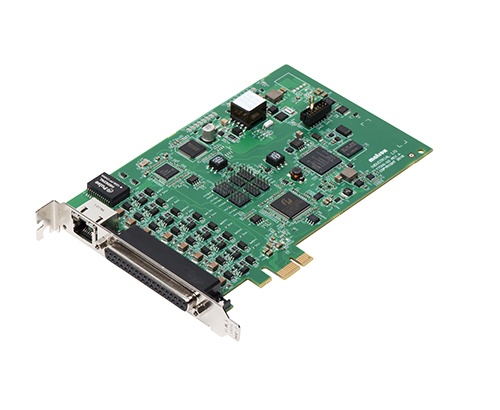

Industrial I/O and Communication Card.
Matrox Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronisation of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).Download Datasheet Contact Sales

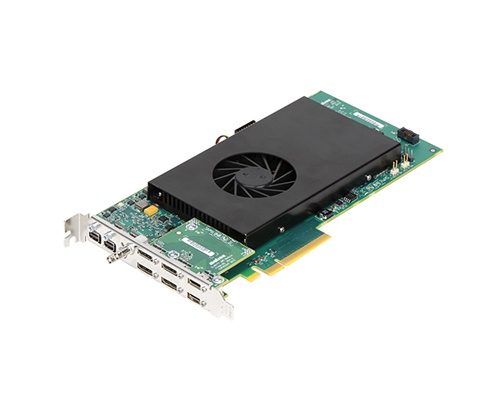

UHD video capture with multiple input formats.
Matrox Clarity UHD is a comprehensive video capture card supporting the full range of video formats from standard definition (SD) to high definition (HD) all the way to ultra-high definition (UHD). Mini DisplayPort, HD-BNC, HDMI and custom analogue DVI connectivity are provided to hook up to and switch between the different types of legacy and advanced video sources used in medical, surveillance and simulation training applications.Download Datasheet Contact Sales

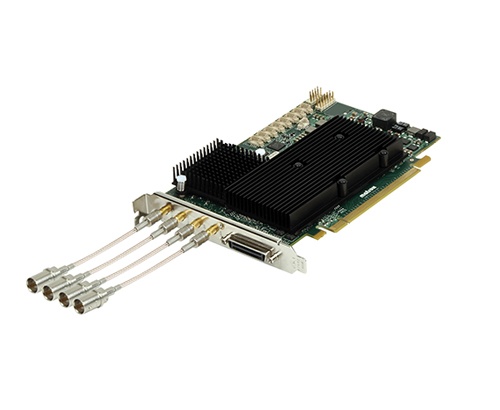

Supports legacy and state-of-the-art video sources.
Matrox Orion HD is a high performance graphics and video capture board that supports standard and high definition video inputs and outputs including 1080p/60.Download Datasheet Contact Sales

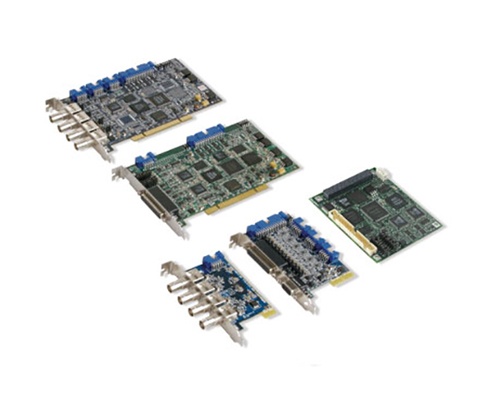

Analogue frame grabber with JPGE2000 real time video compression.
Matrox Morphis is a cost-effective peripheral board that features a dual or quad decoder design for fast camera switching or simultaneous acquisition of up to four live video streams, and includes real-time JPEG2000 compression/decompression.Download Datasheet Contact Sales

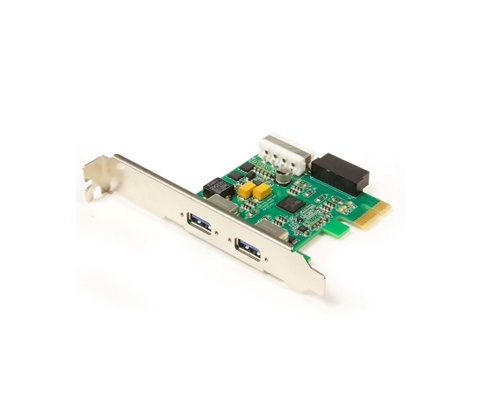

USB 3.1 Host Controller Card from FLIR.
Using the latest chipsets from Renesas and Fresco, these USB 3.1 Gen 1 host adapters will ensure maximum reliability for high speed image transfer. 2 Ports and 4 Ports with individual USB 3.1 controllers are available.Download Datasheet Contact Sales
Ethernet Network Interface Card.
Ensure maximum transfer reliability between GigE cameras and your host PC using the latest Intel Gigabit Ethernet controllers, with options for Power over Ethernet available.Download Datasheet Contact Sales

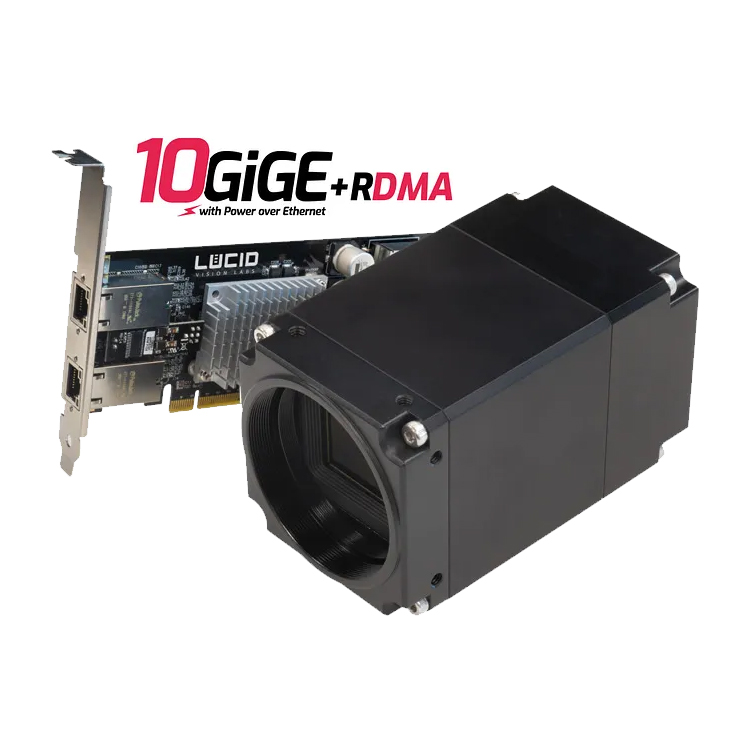

LUCID RDMA Network Interface Card
10GigE with Remote DMA for Optimized Image Streaming
No more bottlenecks! The Atlas10 with the new RDMA from LUCID Vision Labs reliably streams 1.2 GB/s of data directly to main memory, bypassing the CPU and OS. This increases throughput, lowers latency, and eliminates CPU usage, which is required for reliable multi-10GigE camera applications.
Featured at Vision 2022 Stuttgart.

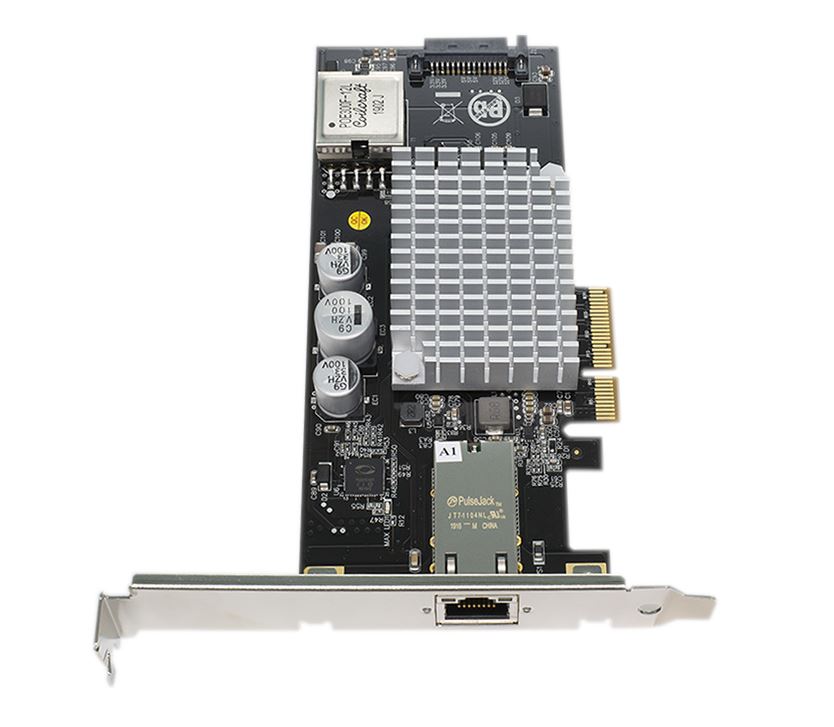

Ethernet Adapter Card from LUCID Vision Labs.
PCIE-POE1-MG2 supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. Compliant to the IEEE 802.3bz standard ratified in September 2016, the PCIE-POE1-MG2 is also backwards-compatible with legacy 1000BASE-T Ethernet. For more details on this product, take a look at the Datasheet below.Download Datasheet Contact Sales

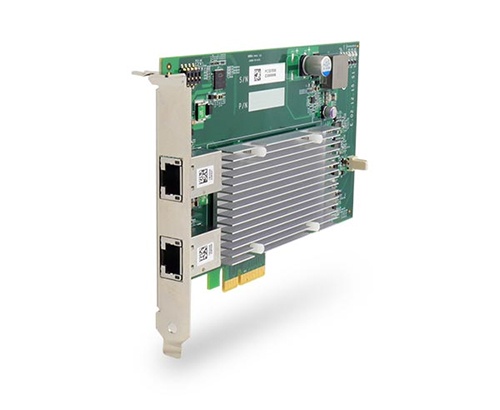

2-port 10GbE Network Adapter with IEEE 802.3at PoE+.
PCIe-PoE550X features 10GbE NIC incorporating Power over Ethernet (PoE+) capability. It features Neousys’ proven 802.3at PoE+ technology and refined power design to ensure optimal signal integrity over 10G PHY and maximal bandwidth. The combination of 10GbE and PoE opens the door to new applications such as high-performance WiFi access points and high-speed/ high-definition industrial cameras over single Ethernet cable.Download Datasheet Contact Sales

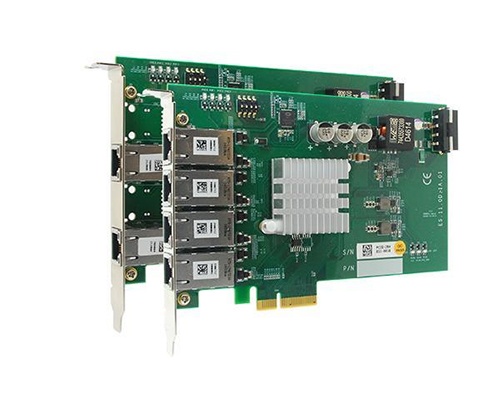

4-Port / 2-Port Server-grade Gigabit 802.3at PoE+ Frame Grabber Card.
PCIe-PoE354at is designed with state-of-the-art Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features, such as checksum offloading, segmentation offloading and intelligent interrupt generation/moderation, to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes the compatibility issue with off-the-shelf motherboards when installing multiple cards.Download Datasheet Contact Sales

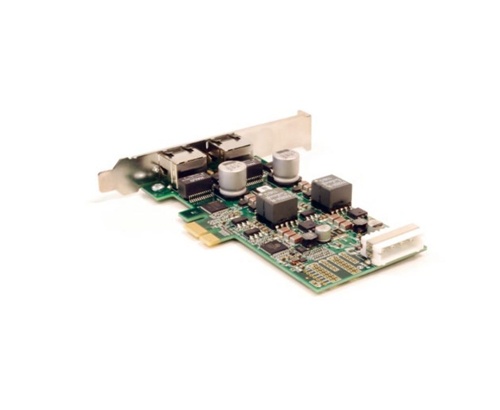

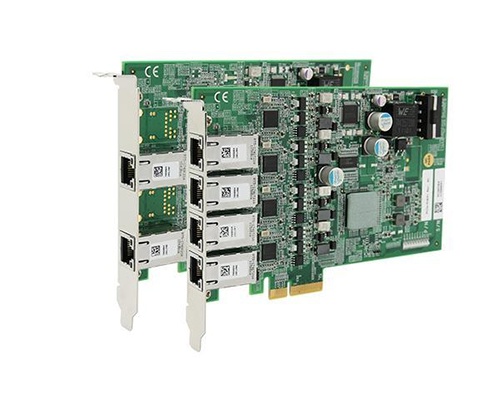

2-Port / 4-Port x4 PCI-E Gigabit Power over Ethernet Frame Grabber Card.
PCIe-PoE2+ and PCIe-PoE4+ are dedicatedly designed for PoE cameras. Each port can deliver 15.4 W of power and 1000 Mb/s bandwidth over a CAT-5/CAT-6 cable of up to 100 meters. It features 9 kB jumbo frame and link aggregation, which conduct exceptional performance for continuously receiving large amount of image data. The design of the PCIe-PoE2+ is able to directly draw power from the PCI-E bus so no external 12 VDC is needed.Download Datasheet Contact Sales
