3D Machine Vision Cameras

Dalsa - Z-Trak L2PC Laser Profiler

Z-Trak™ LP2C 4K is the newest member of the Z-Trak LP2C family targeting in-line 3D measurement and inspection applications. Its 4,096 samples per profile helps to measure and inspect parts with tighter tolerances, and to identify smaller defects cost effectively.

 Maintenance free and factory calibrated, Z-Trak LP2C 4K sensors combine high speed scans with easy-to-use software tools, and deliver highly repeatable and accurate height, width, and length measurements.

Download Datasheet Contact Sales

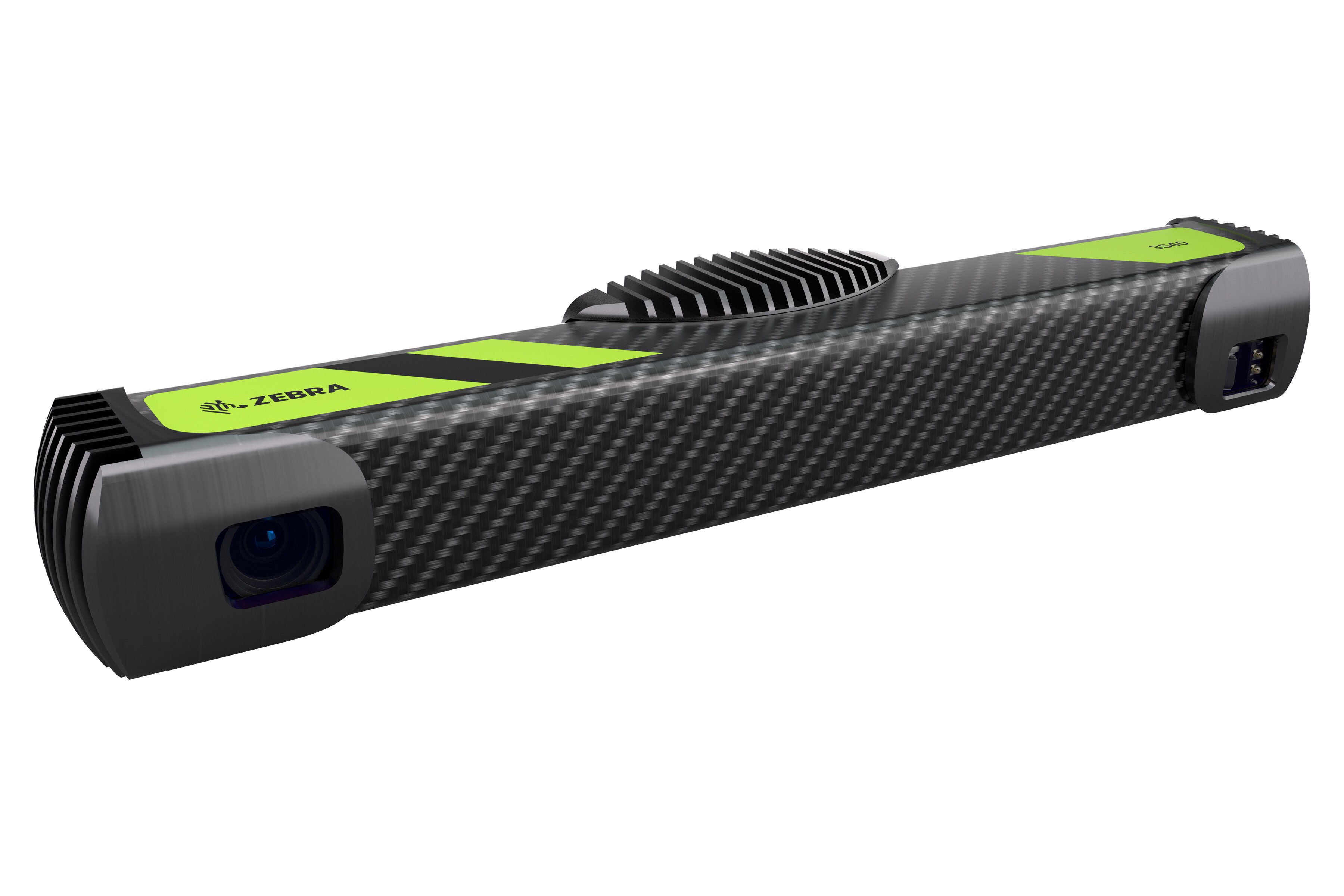

High-resolution 3D imaging for static dimensioning, inspection and depalletization applications

Offering a substantial 3D scanning volume, Zebra’s 3S40 3D sensor delivers unparalleled resolution and accuracy to enable depalletization as well as static dimensioning and inspection of oversized items. Structured light technology enables the 3S40 3D sensor to acquire 1.5 million points (1440 x 1080) in a 450 ms scan to provide highly detailed point clouds and true per-pixel measurement. The device’s ambient light suppression further optimizes results.

Download Datasheet Contact Sales

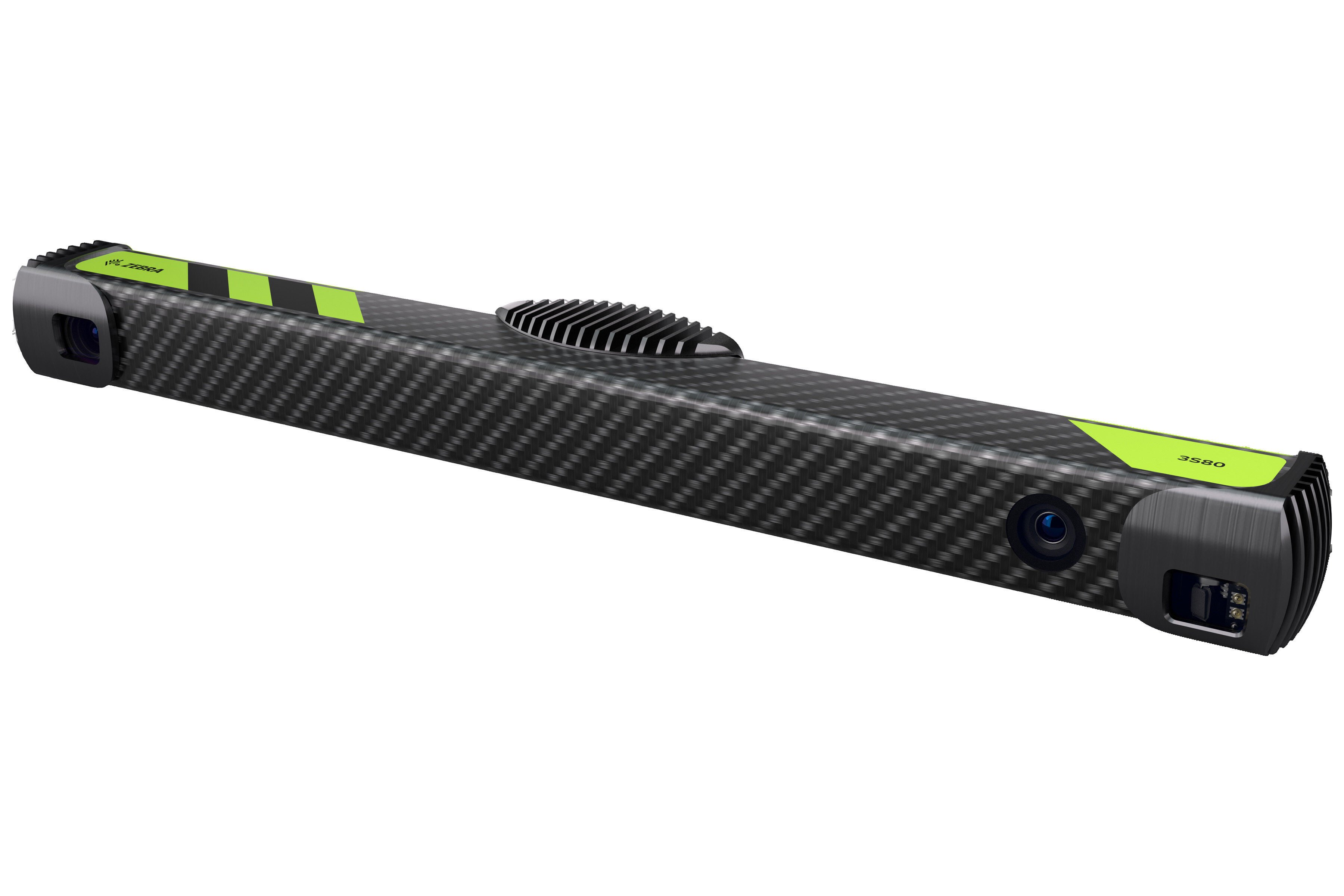

Unsurpassed 3D resolution and accuracy when capturing dynamic scenes

Leveraging patented parallel structured light technology, Zebra’s 3S80 3D sensors offers the industry’s highest 3D image resolution and accuracy when capturing dynamic scenes. Designed for manufacturing inspection and dimensioning applications, the 3S80 can acquire up to 2 million 3D points (1680 x 1200) in a 45 ms scan and render the data in detailed RGB-colored point clouds. This high-speed and high-resolution acquisition means there is no motion blur when imaging objects moving on a conveyor and provides true per-pixel measurement.

Download Datasheet Contact Sales

Powerful 3D Imaging from Matrox.

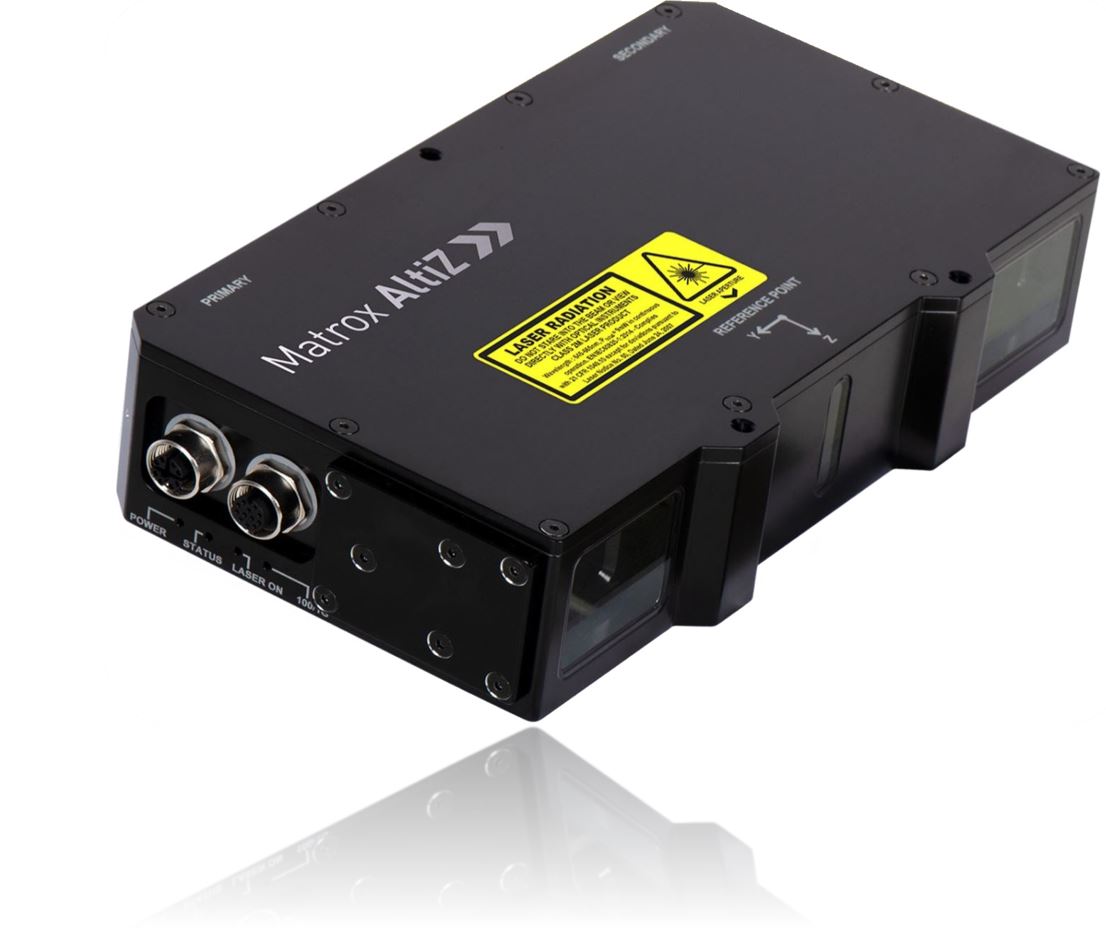

Matrox AltiZ is a series of award winning high-fidelity 3D profile sensors. Each sensor features a dual-camera single-laser design that greatly lessens the scanning gaps often encountered at critical surface junctures because of optical occlusions. Unique algorithms running inside the sensor automatically generate various type of reliable 3D data—individual profiles, depth maps, or point clouds—obtained by smartly combining or selecting the pixel data from the two integrated image sensors, which is automatically sampled for a constant horizontal resolution.

Download Datasheet Contact Sales

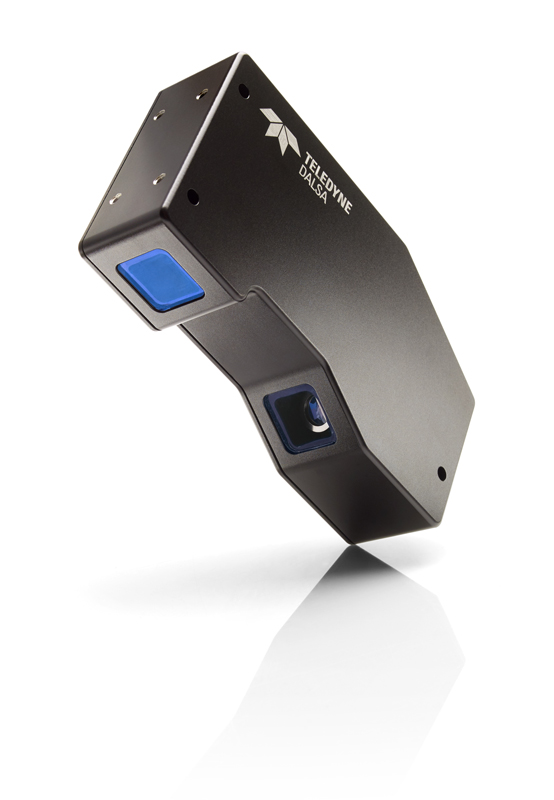

High-performance, low-cost 3D profile sensor

Z-Trak is a series of 3D profile sensors delivering high-resolution, real-time height measurements using laser triangulation. These lightweight IP67 rated profile sensors are ideal for in-line measurement, inspection, identification and guidance applications in automotive, electronics, semiconductor and factory automation. Z-Trak models handle object widths from 8.5 mm to 1520 mm and height range of 10 mm to 1000 mm. All Z-Trak models are factory calibrated and come with a choice of laser options to suit the surface reflectance. Z-Trak series features real-time laser line optimization for uniform measurement results, multi-sensor synchronization using generic Gigabit network routers and Power-Over-Ethernet (POE) to simplify setup and configuration.

For more information, check out the datasheet below.

Download Datasheet Contact Sales

High-speed 3D profile sensors

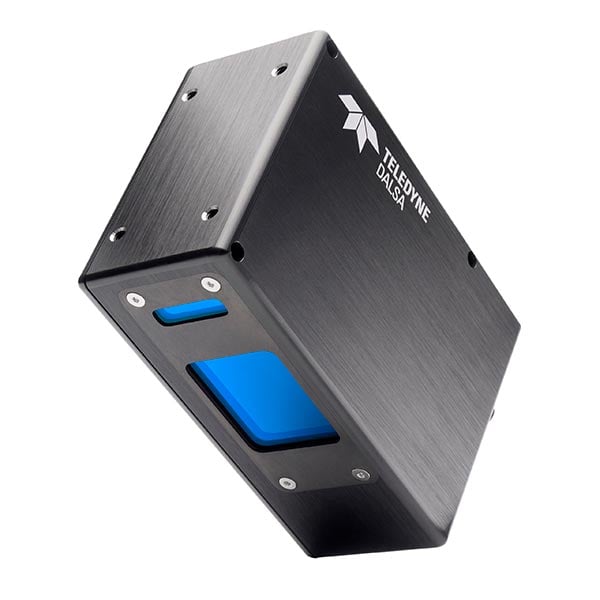

Z-Trak™2 is a new family of 3D profile sensors built on Teledyne Imaging’s 3D image sensor technology, ushering in a new era of 5GigE 3D profile sensors for high-speed, in-line 3D applications.

Models deliver scan speeds of up to 45,000 profiles per second and features built-in HDR and reflection compensation algorithms to handle surfaces with varying degrees of reflectivity in a single scan.

• Up to 2K points/profile; scan rate up to 45K profiles/sec
• Built-in single frame HDR
• 360° inspection and occlusion removal
• Handles varying surface reflectivity to deliver consistent results
• Multi-Sensor Synchronization using single, low cost setup
• IP67 enclosure for harsh operating conditions
• Sherlock 8.1 for rapid application deployment
• Red and blue models
• Reflection compensation algorithms
• Diffused or spurious topologies
• 1, 2.5 and 5GigE interface

For more information, check out the datasheet below.

Download Datasheet Contact Sales

3D Time-Of-Flight (ToF) Camera from LUCID Vision Labs.

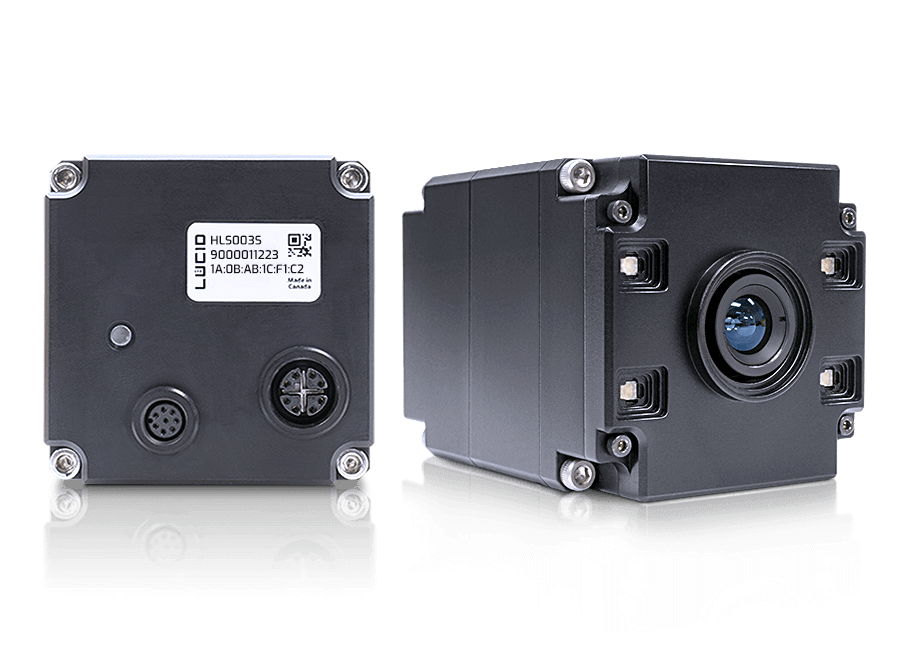

LUCID’s Helios ToF 3D camera has four 850nm VCSEL laser diodes and integrates Sony’s new DepthSense™ IMX556PLR back-illuminated ToF image sensor with high NIR sensitivity, 10?m pixel size, and high modulation contrast ratio. The camera can produce depth data at 30 frames per second with 640×480 resolution over a Gigabit Ethernet interface. It is compliant with the GigE Vision and GenICam 3D standard for ease of integration using LUCID’s Arena SDK or third-party machine vision software. This design results in high accuracy of <5 mm with a precision (standard deviation) of 2 mm at 1 m distance. For more information on the Helios ToF from Lucid, click on the datasheet below.

Download Datasheet Contact Sales

LUCID Visions Labs' Superb 3D ToF Camera just got a Redesign.

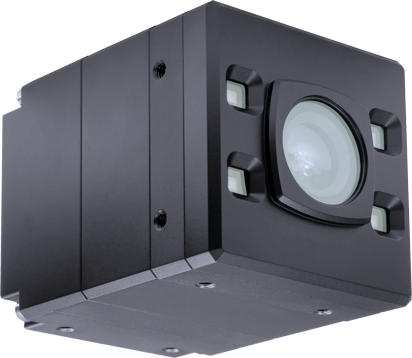

LUCID’s Helios2 ToF 3D camera has four 850nm VCSEL laser diodes and integrates Sony’s DepthSense™ IMX556PLR back-illuminated ToF image sensor with high NIR sensitivity, 10?m pixel size, and high modulation contrast ratio. This IP67 ToF camera can produce depth data at 30 frames per second with 640×480 resolution over a PoE Gigabit Ethernet interface. It is compliant with the GigE Vision and GenICam 3D standard for ease of integration using LUCID’s Arena SDK or third-party machine vision software.

Download Datasheet Contact Sales

Helios2+ Time-of-Flight Camera with On-Camera HDR & High Speed Features

The Helios2+ is an advanced version of the Helios2 ToF camera offering two new key features enabling deployment in challenging environments, High Dynamic Range (HDR) mode and High Speed Time-of-Flight mode, while retaining all other benefits of the Helios2.  Both HDR and High-Speed modes are realized entirely with on-camera processing and will impair minimal changes on the vision systems back-end. The Helios2+ shares the same ‘factory tough’ industrial platform with its predecessor and is 100% mechanically and electronically compatible with the Helios2 to offer a seamless upgrade path for existing customers. Its compact form factor, industrial reliability and attractive price point make the Helios2+ ideal for many demanding 3D applications such as 3D inspection, automated material handling and robotics to run more efficiently while reducing overall system cost.

Download Datasheet Contact Sales

3D Time-of-Flight with 108° x 78° Field of View

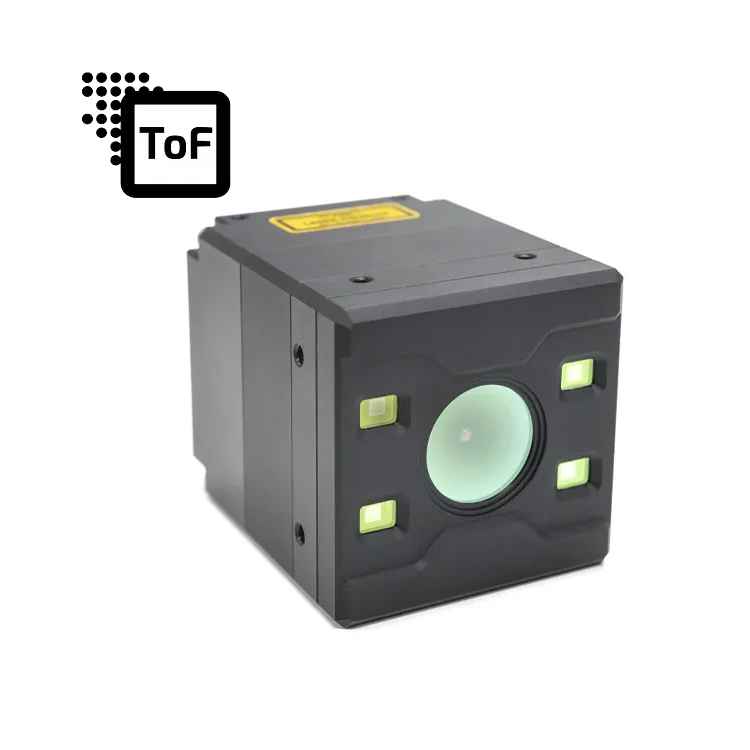

Helios2 Wide integrates Sony’s DepthSense™ IMX556PLR back-illuminated ToF image sensor paired with a wide-angle lens providing a 108º angle of view, suited for applications with a close working distance and large area of operation such as full-size palettizing applications. This IP67 Factory Tough™ 3D camera delivers 640 x 480 depth resolution at up to an 8.3 meter working distance and a frame rate of 30 fps.

Featured at Vision 2022 Stuttgart.

Download Datasheet Contact Sales

Flexible 3D ToF Imaging from LUCID Vision Labs.

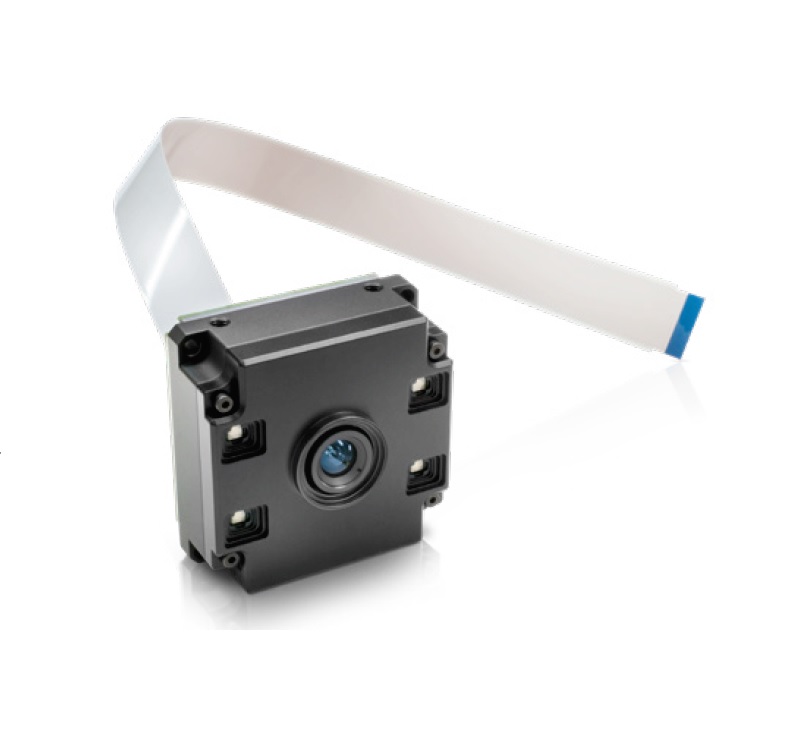

Helios Flex is a robust, pre-calibrated Time-of-Flight MIPI module which can easily be integrated into embedded platforms for industrial and robotics applications. The module features Sony’s DepthSense® IMX556PLR back-illuminated ToF image sensor and has four 850nm VCSEL laser diodes. It connects to an embedded system using the NVIDIA® Jetson™ TX2 and delivers 640 x 480 depth resolution at up to 6 meters distance. The Helios Flex module includes a Software Development Kit (SDK) with GPU-accelerated depth processing and runs at 30 frames per second. For more information on the Helios Flex, click on the datasheet below.

Download Datasheet Contact Sales

Nerian's 3D Camera that perceives depth just like human eyes.

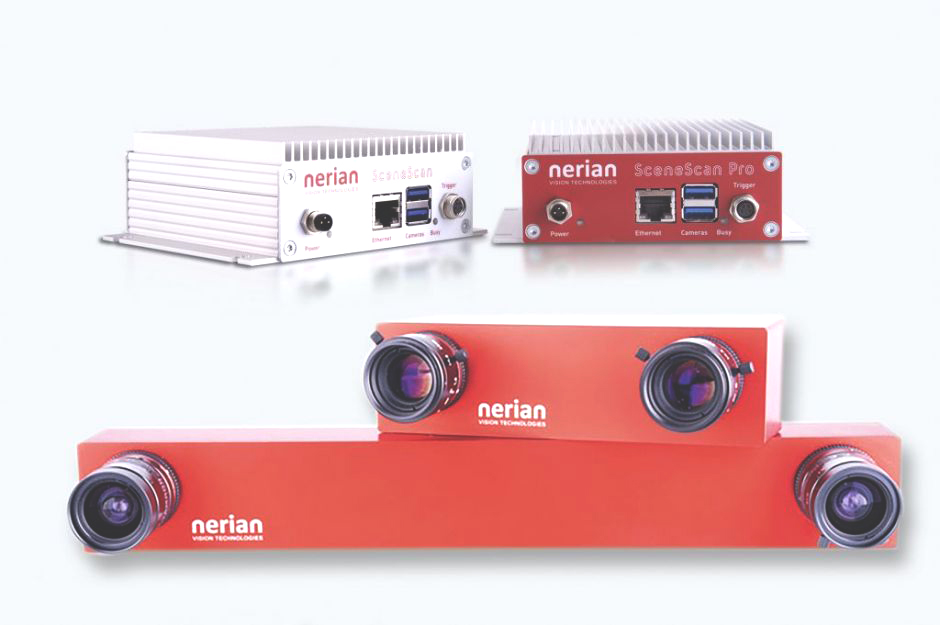

SceneScan is Nerian's latest innovation for real-time 3D depth sensing through stereo vision. Unlike conventional depth cameras, stereo vision is a passive technology, which also works robustly in bright daylight. With the help of a powerful FPGA, SceneScan analyzes the image data from two cameras, and computes a depth map or a 3D point cloud at very high speeds. The system can process images at up to 100 fps and image resolutions up to 3 megapixels.

Download Datasheet Contact Sales

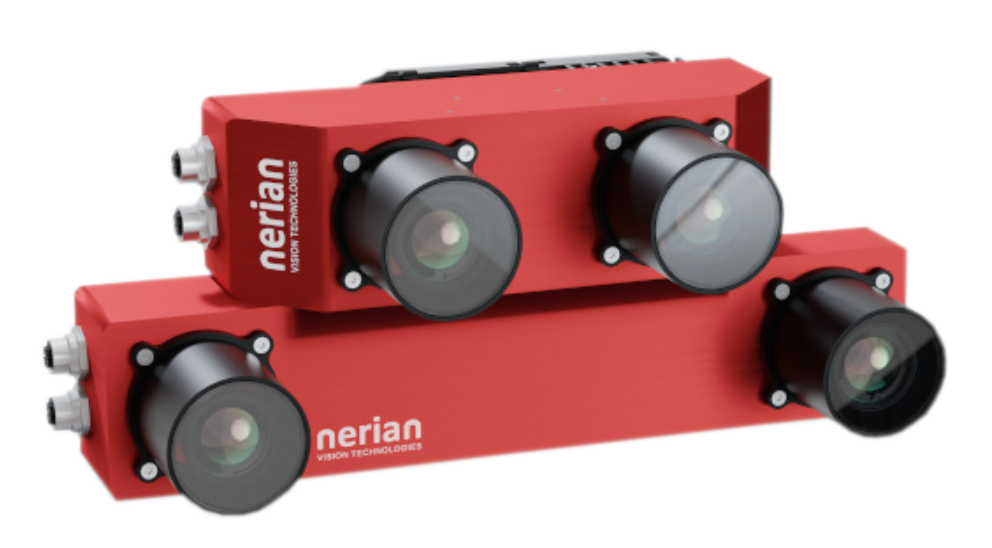

Revolutionary Stereo Imaging from Nerian.

With up to 120 fps and over 70 million 3D points per second, Scarlet offers by far the fastest 3D measurement rate in the machine vision market. In addition, Scarlet achieves an excellent resolution of up to 5 megapixels in camera and depth image. Scarlet combines 3D stereo camera and image processing in one device. Whether for static environments, or hard and critical real-time applications in dynamic environments, our Scarlet 3D depth camera provides you with exactly the image and depth data you need for your machine vision application. For more details on this product, take a look at the datasheet below.

Download Datasheet Contact Sales

Laser Triangulation 3D Imaging from Photonfocus.

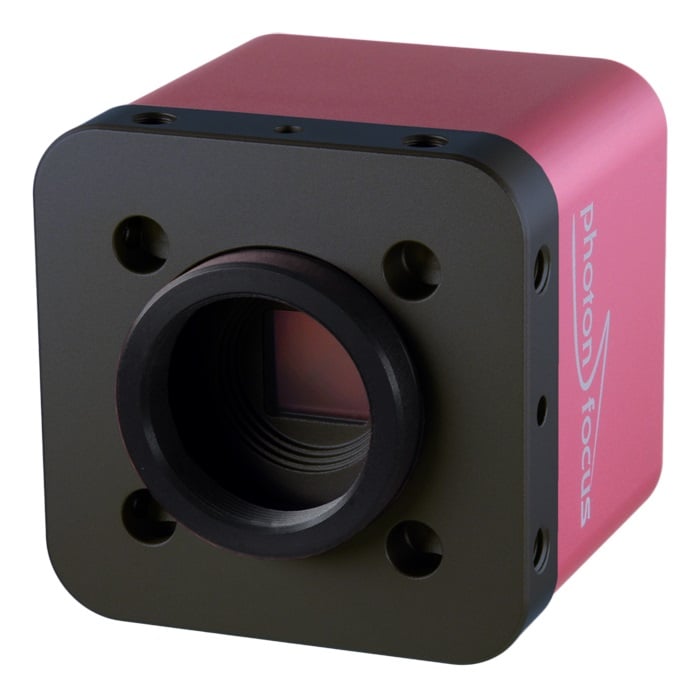

The MV1 3D series offers a wide variety of sensors to address a wide range of 3D applications using laser triangulation, from applications with high speed of movement to applications with low speed but maximum precision. The cameras use Photonfocus' scanning technology called "Line Finder", in addition to High Dynamic Range technology to ensure optimal results even on the most complex surfaces. For more information on the MV1 3D Series, click on the datasheet below.

Download Datasheet Contact Sales
